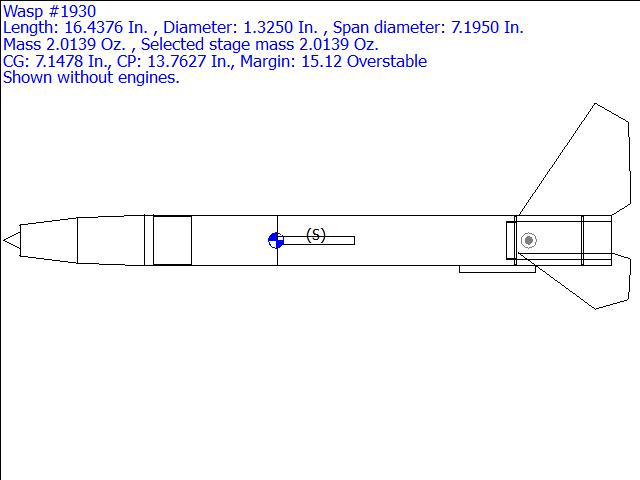

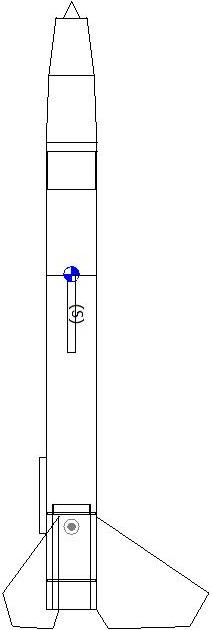

Wasp #1930 Rocksim Design File

Comments: Multiple "Transitions" mode actual shape of PNC-55D nose cone Data entered by Jay Goemmer, 13 Aug 2005 Scans of original plans supplied by Ryan McDaniell, "Ye Olde Rocket Plans" BT-55W body tube is 12" long; multiple yellow and silver tubes model paint scheme

Designer: Estes

Visit www.oldrocketplans.com to download Wasp.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Parts Breakdown

• Wasp.rkt Conical Nose Cone
• Semroc Conical Transition
• Custom Conical Transition
• Custom Conical Transition
• Custom Conical Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.25 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 8.75 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.75 in]
• Estes CR-2050 Ring
• Estes 3012? Ring
• Estes 3012? Ring
• Wasp.rkt Freeform Fin Set Freeform Fin Set
• Mylar Streamer (0.0010 in)
• Estes ESTES 2328 Launch Lug
