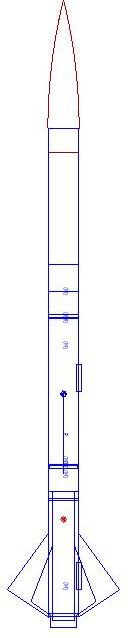

Public Missiles Phantom Rocksim Design File

Comments: RockSim does not allow 2 fins of different shape, so this RKT uses 6 fins of a size that should be "close enough" for simulation work.

Designer: Andrew D. Waddell

Visit www.eng.hmc.edu to download x-calibur_hamr_hmc.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

CG: 29.0720 inches from front
CP: 38.3251 inches from front
Margin: 4.02 Overstable

Parts Breakdown

• AGM-57X Heatseeker Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 12.00 in]
• Public Missiles Ltd. PML CT-2.15 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 24.00 in]
• x-calibur_hamr_hmc.rkt Trapezoid Trapezoid Fin Set
• Public Missiles Mass Object
• Public Missiles Mass Object
• Public Missiles Mass Object
• Public Missiles Mass Object
• Public Missiles Ring
• Public Missiles LL-0.25 Launch Lug
• Public Missiles LL-0.25 Launch Lug
• Public Missiles PML CR-02 Ring
• Public Missiles PML CR-02 Ring
• Public Missiles Rip stop nylon Parachute (36.00 in)
• x-calibur_hamr_hmc.rkt Trapezoid Trapezoid Fin Set
• Public Missiles PML SC-1.0 "1"" shock cord" Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 9.50 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.00 in]
• Public Missiles PML CBP-03 Ring
• Public Missiles PML DR-10 D ring Mass Object
• Public Missiles PML NT-01 1/8x24 nut Mass Object
• Public Missiles PML EB-01 1/8x24 eyebolt Mass Object
• Public Missiles PML CBP-03 Ring
