The American Spirit

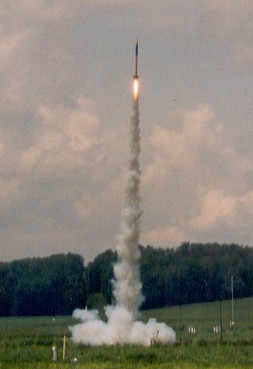

American Spirit with Seven G35 White Lightning motors.
by Douglas Gardei
updated 8/27/04

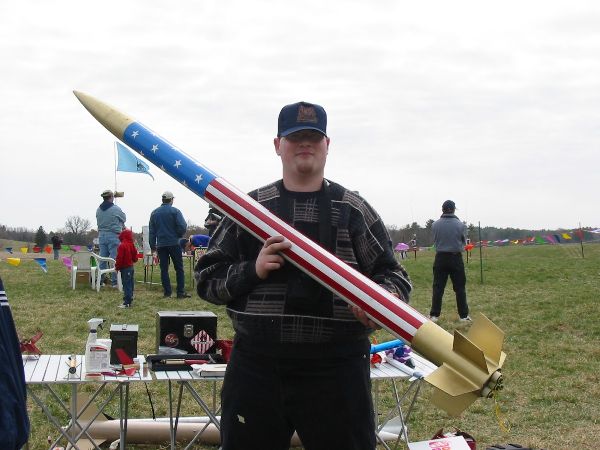

Holding my American Spirit which is loaded with four G35 White Lightning motors. The American Spirit started life as a LOC Ultimate. I received it as a Christmas gift in 1997, building it that winter, and launched it once in Denver, PA with a G80-4T. Mr. Reed, one of the Technology teachers in my High school borrowed it for his families Memorial Day picnic, and flew it on a G80. Then my Ultimate made the journey to my new home in New Hampshire.

April 19th, 1999, the Ultimate once again saw the light of Day, launching on yet another G80 in Amesbury, Mass, at my first CMASS launch. At the same launch, someone sold me a RMS 29/180 and 240 set for a real good price, and Steven Boy sold me a H97. I loaded it into my Ultimate, and gained my level 1. The Ultimate launched again with a G75, and then had its final flight… two F25-9W’s and a single G75-10J. Beautiful flight, but suffered a sep. The payload section drifted away, never to be seen again. The booster section came in ballistic, smashing the tubing up to the forward centering ring, and knocking a couple of the fins off.

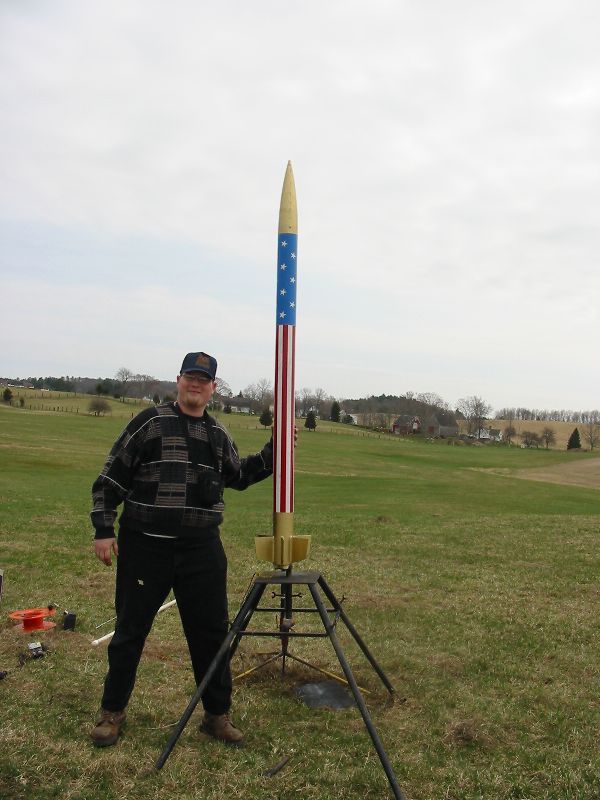

I am standing next to my American Spirit. After the events of 9-11, I decided that I wanted to build a patriotic rocket. Having no money to buy a new large rocket, I decided to repair use what was left of the fin can of the Ultimate, and created a new rocket, which I called the American Spirit. I took the fin can, and removed the remaining attached fins, and sanded down all the epoxy. Then I cut off the damage tubing above the forward launch lug, which left about three inches of damaged tubing beyond the forward centering ring.

Since the original fins were still in good shape, I reattached them, and did the usual epoxy and bondo fillets to give a good finish. Then I epoxied a tube coupler into the airframe above the centering ring, and then attached a two foot section of LOC 4” dia tube to it. I then took a razor blade, and cut off the remaining raised areas of the damaged body tube. Then I filled the valleys created with epoxy and bondo. I used the remaining 4” tubing to create the payload bay, which was attached via a standard tube coupler. For the nosecone, I use the NCR cone from my expired Archer. I also used the parachute from my Archer for its recovery system.

Painting the American Spirit was a challenge. I wanted to do an American Flag theme. So I decided to do the stripes down the body, and put the stars on the payload section. To make things simple with the nose and tail, I decided to paint those gold. First step was to paint the entire rocket white. Then I used masking tape to mask the stripes, thinking of a white and red stripe between each fin (6 fins, that equals 12 stripes). For the starts, I printed out a bunch of stars on label paper, cut them out by hand, and painstakingly position them on the payload tube. I lined up the top of the “arms” with one of the fins, so there are 6 rows of stars, alternating between three and four stars per row. There are 21 stars total. The booster was then sprayed with red paint, and the payload section with blue. Then the fin can, and nose was painted Gold. Shortly after this, I learned that Gold Paint does not take to well to clear coat. Oh well…

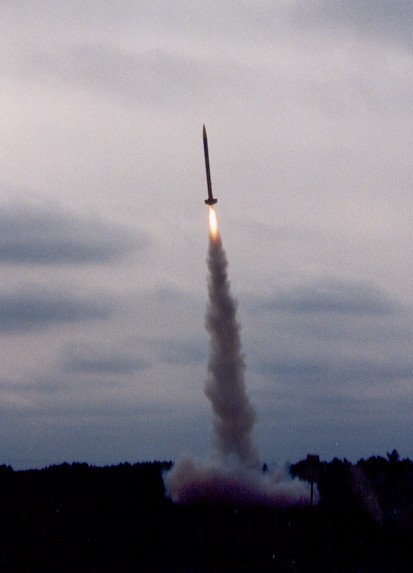

My American Spirit takes off with a H220-10T and dual E23's. First flight of the American Spirit took place on the dark and cold day of April 19th, 2002. I planned to fly it on a H220-10T… perfect day for a Blue Thunder motor. Then I noticed that both my friend Ryan Sebastian and I had E23-8T loads. Wanna put them in the American Spirit? Why Not? So we did. We could not see the flames of the E23's, but it was cool to hear the E23's thrusting for a whole second after the WHAM of the H220’s burn.

Second flight was on July 27th, 2002. Loaded to bear with more power. Ryan Sebastian and I once again collaborated together to put this beast up on more then one motor. In the center, an H128-10W. On the outboards, two G64-10W’s. Three Magnelites were used to get the rocket going, and it was an AWESOME flight. Lots of fire, lots of smoke, and lots of noise. It is also very interesting to see the reduction of the fire and smoke once the shorter burning H128 ran out of fuel.

Some minor repairs were required after the last flight; one of the fins stabbed the payload section. This was easily repaired by putting some masking tape underneath the wound, and filling the puncture with epoxy. Also, since the payload bay was getting a little surgery done to it, I decided to drill the holes and cut the panels in the aft end so it can accept my 4” electronics bay to incorporate dual deployment into this rocket. The 4” electronics bay has a $65 Transolve PK altimeter, and it has performed flawlessly in my EZI-65 and MEGABLAST L2 rocket.

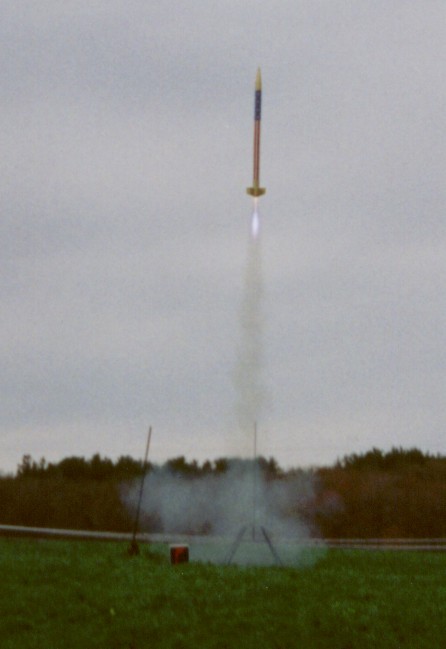

American Spirit flies with a H128 and two G64's. Next flight took place on April 19th, 2003. A central G35-7W surrounded by three G35-7W motors were instantly ignited by Magnelite igniters, and the resulting liftoff was very spectacular. I plugged the ejection wells of the G motors, so recovery was provided by the altimeter. Once again, it function flawlessly.

The most recent flight of the American Spirit took place during NSL 2003 in Clarks Summit, PA. She was loaded to bare seven G35-7W motors. The largest cluster I have ever done. All seven motors ignited instantly with Magnelite igniters, and the Transolve altimeter did its job. However, the main chute got tangled, and it landed with a thud in the tall grass. Fortunately, there was no damage. The video of this flight made it on the NSL 2003 DVD.

I do plan to fly the American Spirit again in the future, but as you can imagine, clustering composite motors can become pricey. Maybe one of these days, when I have more money to burn, I will build a beefed up version, and launch it on a cluster of seven I200’s. Imagine the size of flame that cluster would produce! That will be equivalent to a K1400! Almost a full K!
