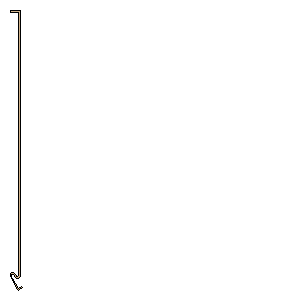

Engine Hook (035022) (Freeform Fin Set)

Fin Count: 1
Fin Height: 4.10 inches
Fin Width: 0.18 inches
Material: Steel (7.85 g/cm³)
Number of Points: 36
Thickness: 0.12 inches

Designs:

PointXY
10.00 inches0.00 inches
20.01 inches-0.01 inches
30.02 inches-0.03 inches
40.03 inches-0.03 inches
50.05 inches-0.03 inches
60.07 inches-0.01 inches
70.08 inches0.00 inches
80.10 inches0.02 inches
90.12 inches0.03 inches
100.12 inches0.02 inches
110.12 inches-3.84 inches
120.00 inches-3.84 inches
130.00 inches-3.87 inches
140.16 inches-3.87 inches
150.16 inches0.03 inches
160.15 inches0.04 inches
170.13 inches0.05 inches
180.11 inches0.05 inches
190.10 inches0.05 inches
200.09 inches0.05 inches
210.08 inches0.04 inches
220.07 inches0.02 inches
230.06 inches0.01 inches
240.05 inches0.00 inches
250.04 inches-0.00 inches
260.02 inches-0.00 inches
270.02 inches0.02 inches
280.03 inches0.04 inches
290.04 inches0.06 inches
300.13 inches0.20 inches
310.16 inches0.18 inches
320.18 inches0.19 inches
330.13 inches0.22 inches
340.12 inches0.22 inches
350.11 inches0.22 inches
360.00 inches0.03 inches
