By Manny Trotta


Diameter:2.0000 inches
Length:40.5000 inches
Skill Level:4

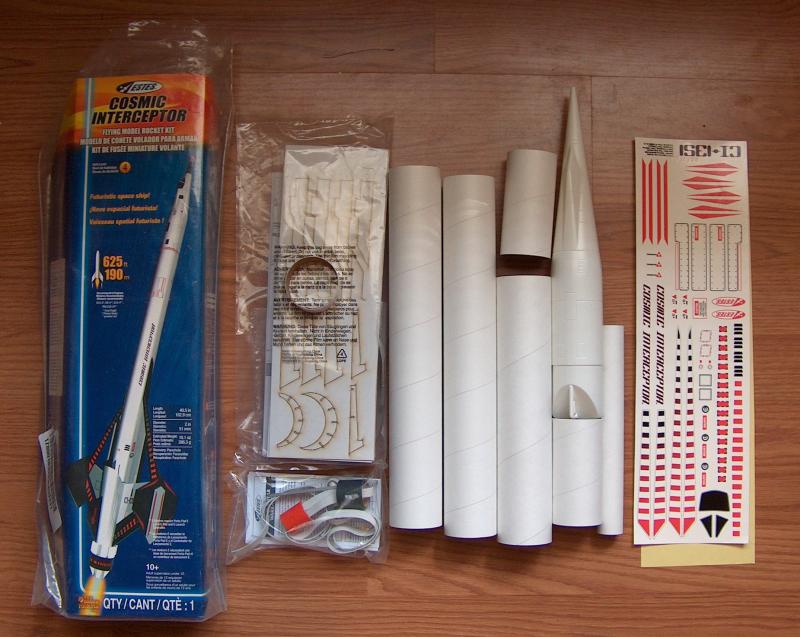

This project is a build of the Estes Cosmic Interceptor, a skill level 4 rocket with a futuristic design. The Cosmic Interceptor will fly up to 625 feet and uses D and E motors. The kit features a large amount of laser cut wood and other card stock parts, a nice sheet of waterslide decals and a large 18" fabric parachute. An impressive looking kit.

 photo HPIM3153.jpg

 photo HPIM3153.jpg

This is the tail/motor mount section.

 photo HPIM3204.jpg

I primed the tail section and per the assembly instructions recommendation, I left off the body tube ring for now. Since the tail section will be white and the ring black, it will be easier to finish and paint the tail components before joining them.

 photo HPIM3207.jpg

Just starting to seperate all of the fin parts

 photo HPIM3208.jpg

Assembling the wings. Once the parts were glued together and allowed to dry I applied epoxy to all of the joints. I then gave the wings a rough sanding and have covered their entire surface with a watered down Elmers Carpenter's Wood Filler.

 photo HPIM3221.jpg

The next step I decided to do is the main body tube assemply. It consists of 2 tubes and a coupler.

 photo HPIM3251.jpg

After sanding the coupler enough to fit into both tubes I glued them together.

 photo HPIM3253.jpg

I really want the whole rocket to look like one piece when it is completed so I decided to finish the body tube before attaching the wings. This way I can fill and sand the tubes without anything being in the way. I covered the spirals and the tube joint with a mix of Elmers wood filler and water.

 photo HPIM3257.jpg

I am using 180 grit sand paper on the tubes between filler coats. After 3 coats the tubes will be ready for the wings to be attached.

 photo HPIM3258.jpg

Main Body tube marked and lines extended using angle iron

 photo HPIM3272.jpg

Trying out my new guillotine fin jig on this rocket. The fins don't really fit in the jig because of the way they are shaped but it still helped me align them.

 photo HPIM3286.jpg

Here is another view of the Cosmic Interceptor in the jig.

 photo HPIM3287.jpg

Masking the fins and body tube for the application of epoxy fin fillets.

 photo DSC_0003.jpg

Here is a shot of the fillet. I used 60 minute Epoxy

 photo DSC_0005.jpg

The horizontal tail fins connect the body tube and vertical fins. In order to get the correct angle on the body tube side I wrapped a piece of sandpaper around the body tube and used that as my sanding block.

 photo cosmicwing1.jpg

Here is one of the fins with a view of the sanded angle.

 photo cosmicwing2.jpg

Sanded and test fit until both the right and left horizontal fins lay level.

 photo cosmicwing3.jpg

At this point the fins looked good so I am ready to glue them into place.

 photo cosmigwing4.jpg

I have the side fins attached as well as the outer part of the intake. The side fins are a little tricky to align and I think I would have done a better job if I had used some type of jig. They both seem to be pointing a few degrees in towards the nose but it's only slightly and they will have to do. The inner part of the intake is assembled, sitting behind the rocket, I'll install that after the rocket is painted.

 photo DSC_0005-1.jpg

I have all of the parts sprayed with primer and ready to be painted. For the last round of sanding before the paint I used 1200 grit. The nose cone has some etching so I will try not to over spray it and lose all that detail. I sprayed the intake fin unit black already but I am not going to attach it until the main part of the rocket is painted. The body tube ring that mounts on the engine mount will also get painted black before I attach it.

 photo DSC_0018.jpg

Here is a top view of the body showing the intake...

 photo DSC_0015.jpg

Here is the bottom. I also epoxyed all the joints so this is becoming a slightly heavy build but I like the way fillets look.

 photo DSC_0017.jpg

After looking closely at the body I decided on another coat of filler primer. Once I get this sanded down again I should be good to go with the paint.

 photo DSC_0019.jpg

 photo DSC_0021.jpg

Finally got a coat of Rustoleum gloss on the rocket today.

 photo DSC_0024.jpg

 photo DSC_0032.jpg

It was a little tough getting the spray into those little square openings so I will need to do some touch-up work

 photo DSC_0027.jpg

 photo DSC_0029.jpg

I decided to paint the motor mount before I attach it to the rocket.

 photo DSC_0026.jpg

For the nose cone I felt the Rustoleum right out of the spray can would go on too thick so I went and picked up an 8 ounce can of Rustoleum gloss white paint, the brush on type. Using mineral spirits I thined a small amount down to the point where I could spray it using my airbrush. It really went on great. I have one self inflicted issue on the far side that will need to be fixed but I was able to get a nice gloss coat applied and retain all the detail.

 photo DSC_0035.jpg

Trying to paint the black detail on the nose cone is something that I just cannot do so I gave up on that idea. To work around my lack of expertise in the painting area I used contact paper. The first step was to make patterns of the areas I wanted to cover. To do this I used tracing paper and a pencil to lift the detail.

 photo HPIM3333.jpg

Once I had a pattern I stuck this to the back of a piece of contact paper that I had sprayed gloss black. I used a small shot of adhesive spray to stick the pattern to the contact paper.

 photo HPIM3334.jpg

I had to cut each piece a couple of times in order to get the right fit but the contact paper goes on and can be lifted and moved easily.

 photo HPIM3335.jpg

Here is a pic showing a few of the black pieces in place. Much better than I did when I had tried to paint the areas.

 photo HPIM3369.jpg

I used Frogtape to mask around the areas to be painted black.

 photo DSC_0113.jpg

A little more black.

 photo DSC_0215.jpg

Here is the top of the left wing. I used frog tape to mask off the white, the stuff works really well. Masking this off was a little tricky so I decided to do one wing at a time. The black paint is mineral spirit thinned Rustoleum sprayed through an airbrush. Once this dries I will start on the right side wing.

 photo DSC_0320.jpg

Left wing bottom view.

 photo DSC_0319.jpg

Left wing where it meets the body tube.

 photo DSC_0321.jpg

Paint is done. The intake and engine mount have been attached. I just need to apply the decals now!

 photo DSC_0381.jpg

 photo DSC_0380.jpg

 photo DSC_0372.jpg

Applying the decals

I just realized that on the side fins I mounted the side panels on the forward end when they should have been mounted to the rear. I just noticed it now after all this time. I wonder how this will affect flight if at all. Anyone catch this earlier? The appearance actually dosen't bother me, I kind of think it looks good but for all my measuring and planning it does annoy me that I still get things wrong.

 photo wrong.jpg

Test fitting the long fin decals I really didn't like the way the ends lined up at the side fin and thought they might look a little better if the angle was a little different.

 photo DSC_0390.jpg

With each of the side decals held in place with a small bit of painters tape I draw a line on each decal parallel to the side fin.

 photo DSC_0393.jpg

After trimming the edges, the ends of the decals are more in line with the side wing.

 photo DSC_0394.jpg

Here is one fin with the decals on.

 photo DSC_0402.jpg

Here is how the both fins look with the decals on. I think I could have gotten them a little closer to the side fins but the camera also seems to be exaggerating the distance and they don't look as far away as they appear in the picture below. You can also see the motor mount decal which is the first one I put on. I started at the bottom just because it seems easier to hold and move the rocket around as I am working on it via the body tube and I wanted to keep that section free of the decals for the time being.

 photo DSC_0398.jpg

This is just about finished. There are a couple more small decals I am not sure if I am using or not but here is how it looks

 photo DSC_0440.jpg

 photo DSC_0439.jpg

 photo DSC_0435.jpg

Without the parachute and shock cord it weights 10.25 oz. The approx. weight per the specs. is 10.1 so its pretty close even with all the finishing materials. I still want to clear coat so i'll have to check the weight again after that. I am planning on future floor polish over the entire thing with the airbrush but I am still not sure.

 photo DSC_0418.jpg
