Photo Album - Photos for the Tip "Adding Altimeter Payload for Low Power Rockets"

These pictures are intended to illustrate the Tip that describes my method of adding an Electronics/Altimeter Bay to low-powered rockets.  This article is geared specifically for the Jolly Logic Altimeter One/Two, which is small enough to fit into a BT-20 body tube and light enough to be hoisted by a 1/2A motor or even T-motors (13mm).

Image 8 of 16
PreviousNext

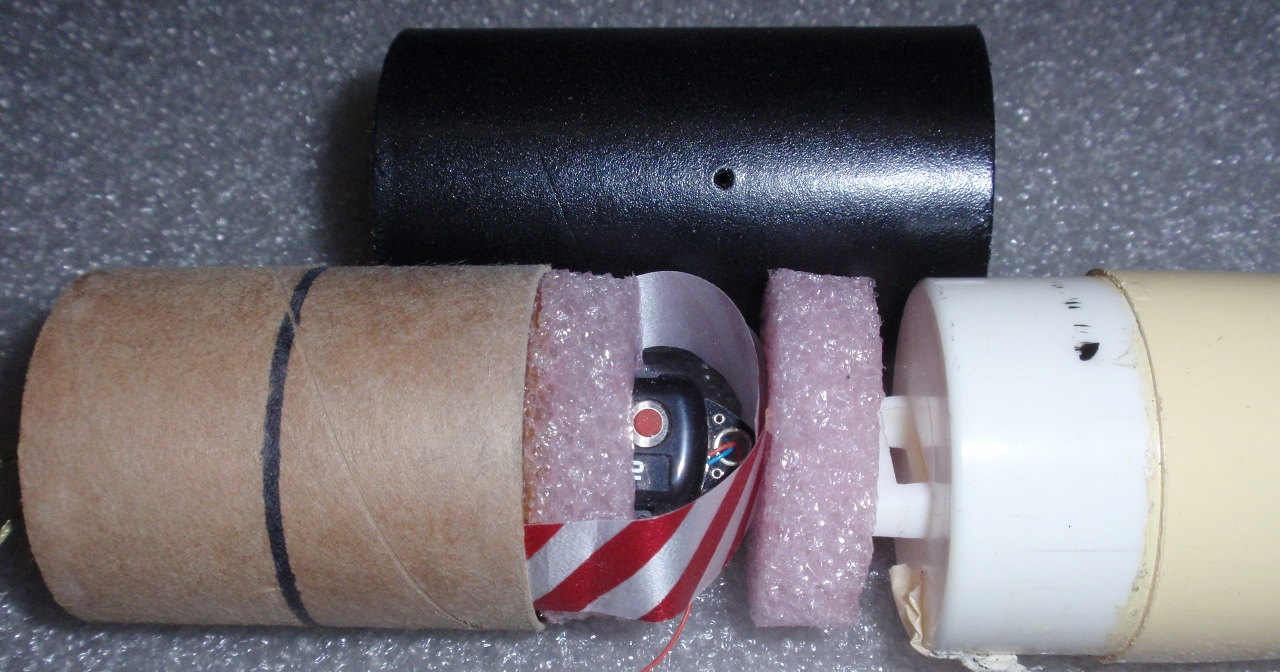

"Exploded" view of altimeter bay showing arrangement of parts. Note no padding covers static vent holes.
