Animal Motor Works - Red Rhino {Kit}

Published:2017-12-01
Manufacturer:Animal Motor Works
Construction Rating:

Contributed by

Brief

The Red Rhino is a small 38mm thin-walled fiberglass rocket named after one of the Animal Motor Works (AMX) reload propellant types.

AMX held a design competition December 2015 and my design was selected for this kit.

Components

Components:

  • Pre-Slotted Lightweight Thin-Wall Fiberglass Airframe
  • G10 Fins (black)
  • Black Injection Molded Polycarbonate Nose Cone with no seams (fiberglass filled material that is paintable and epoxy friendly)
  • 6 inch fiberglass motor tube
  • Two Fiberglass Center Rings

Specifications:

  • Length: 30"

  • Diameter 1.6" (38mm)

  • Weight: 12oz

  • Motor Mount: 29mm

  • Fins: 1/16" G10

Construction

This is a bare bones kit and NOT for Beginners.

There are NO instructions, so experience building a fiberglass rocket is very helpful.

You have to provide your own recovery equipment (parachute, shock chord, etc.) and decide how to attach it.

If you want a motor retainer it must be purchased seperately.

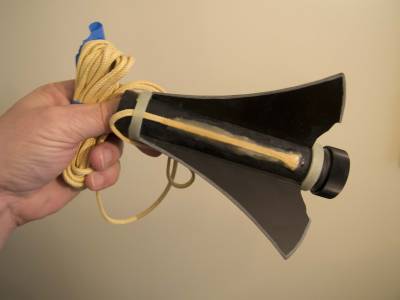

I pre-built the Motor assembly with fins and shock chord attached, extended the fin slots to the aft end and slipped the assembly into place and epoxied.

NOTE: I used an 29mm Aero Pack Motor Retainer.  The screw cap for the retainer is slightly larger than the I.D. of the body tube so I had to calculate very accurately how far the motor tube had to extend from the end of the airframe and still leave room for the retainer cap to snug.  This calculation revealed that the front center ring would flush with the front end of the motor tube.  This would have prevented having a nice strong filet on the forward side of the center ring so I scraped the kit motor tube and substituted a 6.5 inch fiberglass motor tube (extra 0.5 inches)

Finishing

Easy Finishing as with most fiberglass kits because of the lack of seams and mold flashing

1.  Clean all surfaces

2.  Lightly sand

3.  Two coats of primer

4.  Two coats of paint

5.  Apply Custom decal from Stickershock

6.  Finish coat of Pledge Floor Care

Construction Score: 3

Flight

Recovery

A Jolly Logic Chute Release will fit with a 18" chute from Top Flight

Flight Rating: 0

Summary

Overall Rating: 0
