Scratch - Big Blue Vulc {Scratch} Upscale

Contributed by John Lee

Published: 2010-01-10
Manufacturer: Scratch
Style: Upscale

Brief:
BT70 Upscale o' Centuri Vulcan with 7x18mm Motor Mount

Construction:

Construction began with t' buildin' o' t' 7x18mm motor mount from Fliskits meant for t' BT70 tube. Ya scallywag! This be interestin' in that normally, arrr, 7x18mm mounts will nay fit in this tube without some deformation. Aye aye! Blimey! Fliskits came up with an ingenious solution. Avast, me proud beauty! Blimey! At t' end o' each o' t' BT20 motor tubes, matey, a coupler tube is inserted. Avast! Blimey! These couplers will fit into a BT70. Well, matey, blow me down! Blimey! A series o' lunettes around t' periphery makes t' seal complete.

When t' motor mount was done, it sat and waited for a while until I came up with some BT70 tubing. When I got it, I be apprehensive about t' fit. Begad! T' idea from Fliskits seemed good, almost too good t' be true. Ahoy! It be true. Avast! T' mount slipped in easily and was glued in place with yellow glue.

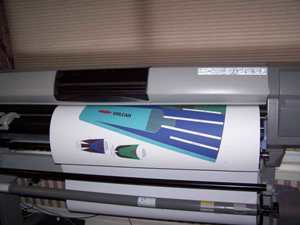

I started t' print out t' shrouds for t' BT70 Vulcan on a big HP plotter on heavy cardstock back in February. Arrr! My plotter has always been grouchy about thick media and this time I pushed it too far, damagin' 2 o' t' print heads. Ahoy! T' cyan and yellow would only work intermittently and I could nay get shrouds I be happy with.

I could nay justify t' cost o' replacin' t' printheads until a project came along for t' church and I got it done. Avast, me proud beauty! I also decided t' print on band paper and laminate that t' t' heavy stock. Well, blow me down! T' colors came out vibrant and great.

With shrouds that satisfied me in hand, matey, I began t' cut them out. Avast! I then put a small amount o' white glue on t' back o' then, screeded it across t' whole surface and mounted it t' t' heavy stock, arrr, smoothin' it out as I went.

T' laminated shrouds had a day t' dry and I be disappointed t' see that some significant wrinkles crept in despite t' care I had tried t' take earlier. I figured they were wrinkles I could live with and began t' cut t' individual pieces out.

T' laminated shrouds were quite a bit stiffer than t' plain cardstock. Ahoy! Avast! This should help t' strengthen things a bit but it makes rollin' t' main shroud more difficult. Aye aye! Ya scallywag! I decided t' roll it as tightly as I could and let it sit that way for a week while I was t' be out o' town. I am glad t' have finally found a use for some o' those rubber band type shock cords that come with some kits!

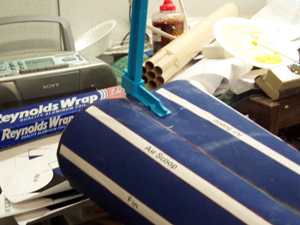

Leavin' t' body shroud rolled up for most o' a week did help. Ahoy! Arrr! When I got back home, me hearties, it wanted t' stay curled up. Ahoy! Aye aye! I gingerly test fitted it along t' tab and then applied some white glue at t' aft end and pressed t' sides together. I then took a small plastic clamp t' hold it more or less in place while I messed with t' forward end. Blimey! Arrr! I put some white glue on that and clamped it as well and turned t' makin' fine adjustments in alignment. Ahoy! Aye aye! I did nay glue t' middle part o' t' shroud at this point.

T' next day, I tackled gluin' down t' middle portion o' t' shroud. Aye aye! I needed somethin' besides me t' hold it shut while t' glue set. Blimey! Aye aye! I decided t' place t' glue and press t' sides together. Ya scallywag! I then let them "expand away from each other for a few moments while I got set up for me next step. Ya scallywag! Avast, me proud beauty! I had a long wooden dowel, bigger than a BT60 but smaller than a BT70 and pushed that through t' inside o' t' shroud from one end t' t' other. Avast! I then laid a piece o' 1x4 along t' seam on t' outside. Clamps were used t' hold t' 1x4 t' t' dowel and keep t' middle pressed down.

As t' seam on t' shroud began t' set up, I began considerin' t' fins again. Ya scallywag! Since t' colored paper had been laminated onto t' heavy stock with white glue, they were quite stiff; much more so than regular card stock. I began t' form t' first fin by trimmin' away all t' material up t' t' foldin' tab on either side. Aye aye! Well, blow me down! I did leave t' extension lines markin' t' fold location in place at this time, me bucko, though. Ahoy! Avast! A long steel ruler was then taped into place on t' back side o' t' fin with one edge aligned with t' fold line. When I be sure that t' ruler would nay move, I used it as a stiff edge against which t' fold t' tab. Begad! T' procedure be then repeated on t' other side. Begad! Ya scallywag! T' central fold be accomplished similarly and then t' excess material was trimmed from either end.

For t' after bulkhead, I used a piece o' 1/4" balsa. Begad! Ahoy! I cut t' cardstock bulkhead out and smeared some white glue along t' back. Arrr! I then placed it on t' balsa and applied some clamps t' keep it from curling. When t' glue be dry and t' clamps removed, I still had quite a bit o' material t' remove. When I built me BT60 clone o' t' Vulcan, matey, I removed most o' that with an X-acto and then finally remembered t' belt sander when thar was nay too much left t' do. Ahoy! This time, I went straight t' t' sander and, for some reason, noticed t' disk and decided t' give that a try. Blimey! It be t' right choice. Well, blow me down! Avast! I could set t' piece on t' little shelf and gently feed it into t' disk sander, stoppin' when I got t' a line. Avast! Well, blow me down! It was t' best one o' these things, and t' easiest, me hearties, I had produced t' date.

Cuttin' out t' central circle be nay so simple. Begad! Blimey! Aye aye! Blimey! I used t' brute force approach with an X-acto knife and t' results were fairly rough. Well, me bucko, blow me down! Blimey! I cleaned up t' rough edges with sandpaper and then test fitted t' BT70 body tube. Avast! Blimey! T' bulkhead be then test fitted in t' body shroud but nay glued at this point.

In previous Vulcans, matey, arrr, t' motor mount had nay extended much aft o' t' bulkhead. Well, matey, blow me down! In this one, however, I was goin' t' let t' full length o' t' mount protrude. Blimey! With that in mind, ya bilge rat, I decided t' go ahead and paint t' aft portion o' t' body tube/motor mount. Ya scallywag! I set it up in t' booth and primed it with 2 coats o' white. Avast, me proud beauty! When that be dry, t' aft end got 2 coats o' hammered silver.

I knew I was goin' t' need 2 lengths o' BT70 for t' length o' t' shroud. When I test fitted t' tube with t' motor mount and noted t' location o' t' coupler/baffle, ya bilge rat, shiver me timbers, I realized that packin' a chute would be a tight matter in t' space left t' me for t' upper tube. For that reason, I inserted a mandrel and trimmed off about 5" o' t' tube with t' motor mount.

A rin' o' yellow glue was then swabbed around t' cut end o' t' body tube and t' baffle was inserted. Avast! Ahoy! When t' glue had dried sufficiently, arrr, another rin' o' glue was applied in t' end o' another BT70 tube and t' 2 tubes were joined together.

T' extended body tube was fit into t' aft bulkhead so that t' cluster mount protruded from t' aft end. Begad! Blimey! T' tube and bulkhead were then fitted into t' shroud and t' forward end was marked where it poked through. Ahoy! Blimey! T' tube be then removed and cut down t' length.

I wanted t' use an internal launch lug on this rocket since doin' so had served me well on me original Vulcan Clone and on me BT60 upscale. Blimey! Blimey! Lookin' around me shop, though, I had only 2 6" pieces o' 1/4" lug. Blimey! I tried usin' some MMX tubin' but t' BT2 would nay fit, me hearties, t' BT2.5 be very tight and t' BT3 had a lot o' slop in it from bein' too loose. Aye aye! Begad! I be tryin' t' remember from where I had obtained me previous 6" lengths with t' plan o' splicin' sufficient lengths together t' run t' length o' t' tube when I realized that t' loose fit o' t' BT3 over a long distance would nay be a problem. With that in mind, I joined 2 pieces with maskin' tape.

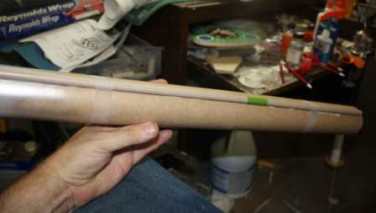

T' super lug be trimmed t' t' length o' t' body tube and then a line was run t' length o' t' tube. Avast, me proud beauty! Begad! Yellow glue be applied along t' line and t' lug be pressed into place and held thar t' dry with t' application o' some tape.

T' central tube, bulkhead an lug were all test fitted t' make sure that everythin' would line up as intended. Ya scallywag! A batch o' 15 minute epoxy was then mixed t' put it all together. I used a brush t' paint a rin' around t' forward end where t' BT would emerge and also painted some around t' junction with t' motor mount. Things were then slid back together and eased into place. Aye aye! I be goin' t' use t' remainin' epoxy t' "paint" t' aft bulkhead into t' shroud and firmly fix t' motor mount but it decided t' suddenly set up on me as I was about t' make t' first brush stroke. Aye aye! Well, blow me down! It was ugly.

I smartly threw t' post away and opened me big can o' ethanol t' try and clean up some o' t' mess while it was still semi-soft. Begad! That bein' done, I mixed another batch and smartly pained things into place.

I took t' occasion o' lettin' t' epoxy set up as an opportunity t' tie a long piece o' sewin' elastic t' t' Keelhaul®©™®. T' knot was fixed with some white glue.

T' closure o' t' shroud around t' body tube at t' front end was nay perfect. Ya scallywag! Blimey! T' rectify matters, me hearties, I smeared some white glue into t' gaps and pressed t' shroud down. Begad! Blimey! Well, blow me down! Blimey! Holdin' it down got old smartly so I held it in place t' dry with some maskin' tape.

I started t' process o' mount t' first fin by takin' down one edge with white glue. Ya scallywag! It was nay me intention t' rely o' t' white glue except as a temporary expedient.

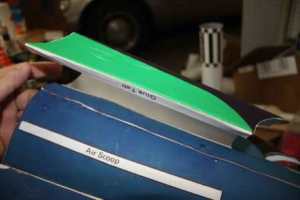

Lettin' t' tackin' o' t' first edge o' t' first fin dry gave me t' opportunity t' consider t' cockpit canopy. Arrr! I decided t' go with t' easier version, arrr, cut it out, folded it and glued it into shape, arrr, again usin' white glue.

When t' glue sealin' t' shroud t' t' forward end o' t' BT had a day or so t' dry, t' tape was removed and t' shroud be indeed better adhered t' t' tube. Aye aye! Avast! A little trimmin' still needed t' be done t' make things look better and neater but t' main goal had been achieved.

Whereas in me previous BT60 upscale o' t' Vulcan, ya bilge rat, me bucko, I had just used a plastic Estes nose cone that be "close enough", me bucko, arrr, this time I wanted t' do it right. Begad! I contacted Gordon Agnello o' Roachworks and he turned a custom balsa cone for me. Arrr! It be beautifully done and, shiver me timbers, bein' justifiably proud o' his work, me hearties, it had his signature on t' tail end. Begad! Begad! I hardened and sealed t' NC by drizzlin' on a coatin' o' thin CA and lettin' it harden. Begad! When hard, ya bilge rat, me hearties, ya bilge rat, I gently sanded it with some #400 sandpaper.

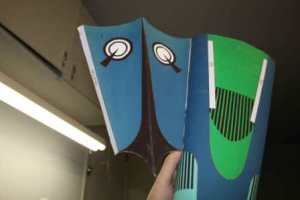

Allowin' t' CA t' fully cure on t' nose cone let me turn me attention back t' t' installation o' t' fins. Arrr! Ya scallywag! T' first had already been tacked on and now it was time t' do t' same with t' second one. Avast, me proud beauty! Avast, me proud beauty! Again, white glue was used at this stage just t' get t' fin into place.

Wrestlin' with t' fins gave plenty o' time for t' CA t' dry on t' NC. T' NC be then sanded with #400, taken t' t' booth and primed with 2 coats o' Kilz. Avast, me proud beauty! After a day t' dry, t' primed NC be sanded again with #400.

T' vertical tail fin was applied in t' same manner as t' two win' fins. It be tacked into place with white glue.

T' NC havin' had a day t' dry and been sanded be taken t' t' booth and given 2 coats o' blue. Avast! Ahoy! Blimey! When dry, arrr, me bucko, t' painted cone was tied into t' elastic o' t' shock cord and fitted for t' first time into t' body.

T' air scoop on t' ventral surface o' t' rocket was applied with white glue in t' manner o' t' tail and wings.

When all o' t' paper fins, tails, scoops and cockpits were in place with white glue, shiver me timbers, I wanted t' make sure they stayed in place. Begad! Blimey! Ahoy! Blimey! It be never me intention t' rely just on t' glue. Arrr! Blimey! Ahoy! Blimey! With that in mind, I mixed some 15 minute epoxy and used a brush t' reinforce all o' t' seams. Aye aye! Blimey! I did this twice, matey, buildin' up a pseudo-fillet in each case. Ahoy! Blimey! I was also kind o' messy and drizzled epoxy where I did nay want it.

After fumin' for a while, me hearties, I thought I could make t' blunder work t' me advantage. Ahoy! I was usin' t' same stock for t' shrouds that I had used for me BT60 upscale but t' distance betwixt support is greater in this one. Begad! Its different enough that I worried about t' integrity o' t' shroud. Ahoy! Nay havin' very much epoxy experience, me hearties, me hearties, I decided t' paint t' entire shell in t' hopes that would stiffen it up and protect t' dye from t' transfers.

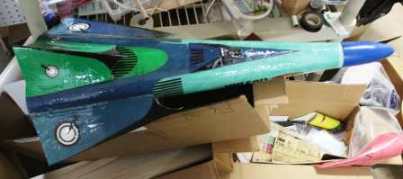

Doin' that was a long process. Ahoy! Even t' 30 minute epoxy seemed t' be curin' in only about 8 minutes so I wasted a lot in t' early stages. I also didn't control blobs as well as I would have wished. Avast! From a distance, ya bilge rat, though, it does have a glossy appearance and doesn't look too bad.

As this project finally began t' wind down, matey, I realized that t' issue o' nose weight be one that was goin' t' come back and bite me. Begad! Begad! Since I don't do RocSim, I took a qualitative as opposed t' quantitative approach. Well, blow me down! I knew what worked in me BT60 upscale and have t' sense that it was a bit more than needed. With that in mind, me bucko, arrr, I decided t' try goin' with about t' same amount in this version.

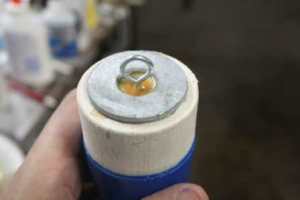

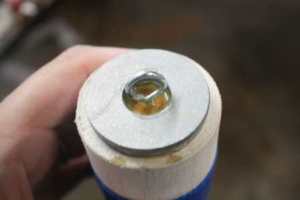

Since this one has a balsa nosecone instead o' a hollow plastic one, matey, t' epoxy embedded BBs were nay goin' t' do it. Aye aye! I went t' a hardware store and bought 2 large diameter washers that massed about t' same as t' BBs. Avast! T' eye screw was removed and a bed o' epoxy was smeared on t' base o' t' cone, me bucko, makin' sure that it went into t' screw hole. Avast, me proud beauty! A washer was then set in place on t' epoxy and t' screw inserted again. Ahoy! A bit more epoxy was mixed and slathered on t' top o' t' first washer. T' second be then set in place on top o' it. Well, blow me down! T' epoxy had nay fully cured and a few drops more were mixed and used t' fill t' central cavity o' t' washers and lock t' screw into place.

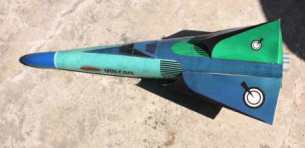

T' epoxy on t' weights got a day t' dry and then t' cone be tied into t' elastic. Begad! That means that t' Big Blue Vulcan is ready t' take t' t' air!

Flight:
T' Big Blue Vulc sat around from August t' January after bein' finished without ever gettin' t' fly. Avast! I wanted t' make sure that all t' motors o' t' cluster lit off so I wanted t' use t' new Quest igniters. Ya scallywag! I just kept puttin' off t' orderin' o' them. Arrr! I finally ordered some just before Christmas and received them just in time for me Club's January launch.

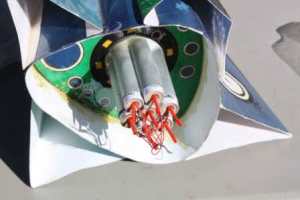

I installed a Nomex protector and a 24" nylon chute and then began t' prep t' motors. I decided t' use t' new Quest long burnin' C6-3s. They seemed t' be a little fatter than t' older European Quest motors and they fit snugly into t' mount. Ahoy! They were tight enough that I was nay worried about friction fitting. Avast! T' Quest igniters were nice also and their design made twistin' t' leads together nice. Ya scallywag! Blimey! T' plastic straws that protect t' pyrogen were supposed t' be used as plugs. I found that they did nay fit t' nozzles too well until I took an X-acto and sharpened t' ends a bit. Then they worked fine.

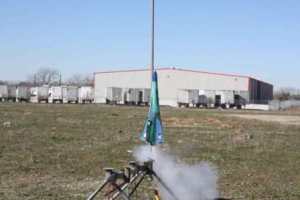

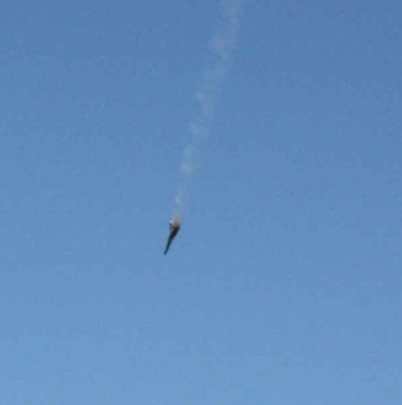

When I got things set up at t' pad, shiver me timbers, I warned everyone that this be a heads up flight. Blimey! Aye aye! It looked good sittin' thar and I was eager t' press t' button. At ignition, it be lookin' good. Avast, me proud beauty! Begad! All 7 motors seemed t' have lighted off and t' Big Blue Vulcan rose off t' rod. Begad! T' flight looked good early on. Ya scallywag! Their was no wobble as is common with me original Vulcan or me BT60 upscale. Begad! It did, however, ya bilge rat, begin t' tip over. Begad! This occurred durin' t' powered phase o' flight. Begad! I got a sick feelin' when I decided that it was definitely pointin' downward and I could still see flames comin' out o' t' motors. When t' motors did burn out, I waited anxiously for t' ejection charge t' save me months o' work. I wondered if maybe some C6-45s had been labelled as C5-3s and it kept plummetin' downward. Aye aye! It then disappeared behind t' GSE truck and I was delighted t' hear Todd exclaim that he had seen a good ejection. He neglected t' mention immediately that t' ejection took place AFTER impact with t' ground.


Summary:

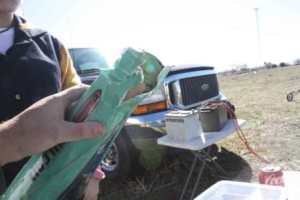

An examination o' t' carcass was instructive. All 7 motors did ignite and it took off well enough. Aye aye! It just could nay stay oriented vertically. There was nay enough thrust. Later in t' day I had a similar experience with another rocket flyin' on a Quest C6. Well, blow me down! Ahoy! It too seemed underpowered. Begad! Ahoy! Immediately afterward, that same rocket behaved wonderfully on an Estes C6. Avast, me proud beauty! Aye aye! Havin' a bigger spike might have saved t' Vulcan. A better option though would have been t' use a larger motor mount.

T' motor mount be t' only part o' t' rocket t' survive unscathed. Begad! Well, blow me down! T' nose cone be dinged up pretty well and t' body tube be crumpled at t' forward end. Begad! It was nay worth repairin' and I gave it t' an excited boy from me club t' addlepate around with.
