Sunward Aerospace Mercury Lander Jr.

Sunward Aerospace - Mercury Lander Jr. {Kit}

Contributed by Jewel B. Butler Jr.

Construction Rating: starstarstarstarstar
Flight Rating: starstarstarstarstar
Overall Rating: starstarstarstarstar
Manufacturer: Sunward Aerospace
Semroc Mercury Lander Jr.

Brief:
Single engine 18mm rocket with four tube lander legs and a large chute. This allows this rocket to gently touch down on all fours every now and then when conditions are good.

Construction:
BT-60 body tube, 4 BT-20 for legs, 4 centering rings CR20-55 for the base of the feet, balsa nose cone, 1/8" launch lug, a small screw eye, 24" all rubber shock cord, and a nice large chute.

The instructions were very easy to follow. I used the Estes fin markers to mark the body tube. I pre-glued the fins and main tube so when I stuck them together they stayed stuck. I also used a 1/4" screw eye for a little extra nose weight.

Finishing:

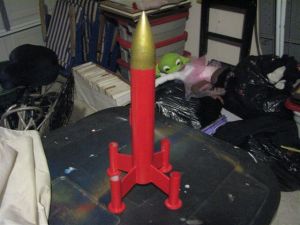

After every thing dried I primed and painted it red and gold.

Semroc Mercury Lander Jr.Semroc Mercury Lander Jr.

Semroc Mercury Lander Jr.Semroc Mercury Lander Jr.

Semroc Mercury Lander Jr.Semroc Mercury Lander Jr.

Semroc Mercury Lander Jr.Semroc Mercury Lander Jr.

Construction Rating: 5 out of 5

Flight:
A8-3 is not enough power. B6-4 is the one good boost was slow but straight. The C6-5 pushed it real nice. I used a little dogbarf wadding to protect the chute. Two nice flights and one not so nice.

Semroc Mercury Lander Jr.Semroc Mercury Lander Jr.

Semroc Mercury Lander Jr.

Recovery:
Recovery worked 2 out of three times, no damage to rocket at all.

Flight Rating: 5 out of 5

Summary:
It is a nice project for anyone to undertake. I liked the kit because of the tubes for legs.

Overall Rating: 5 out of 5
