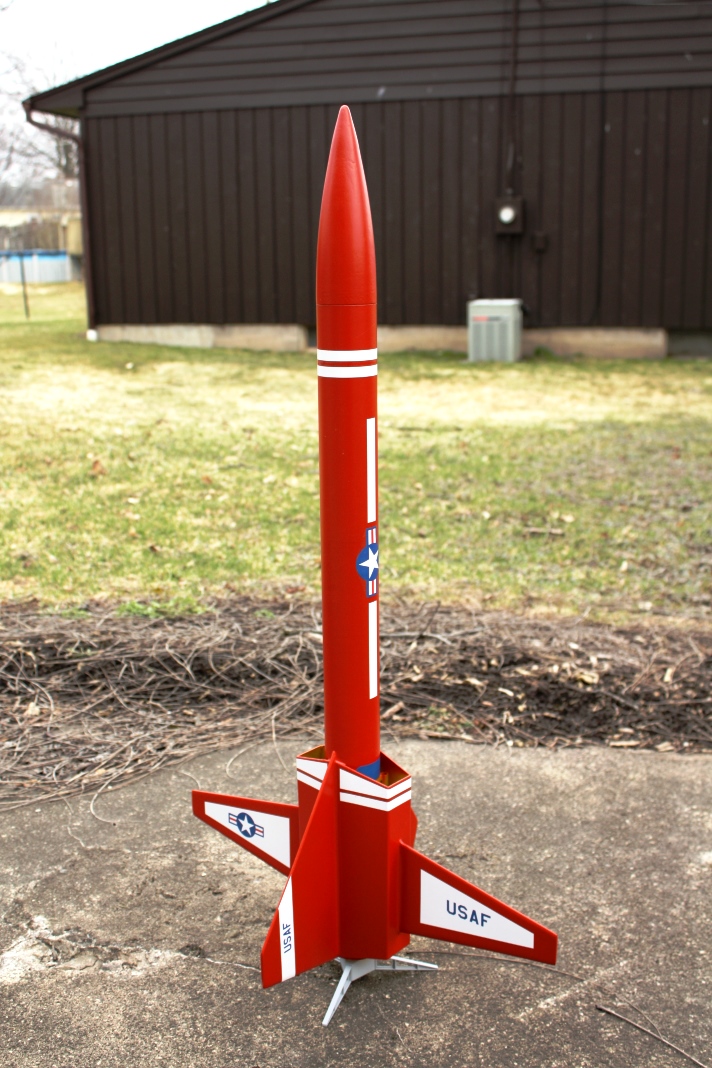

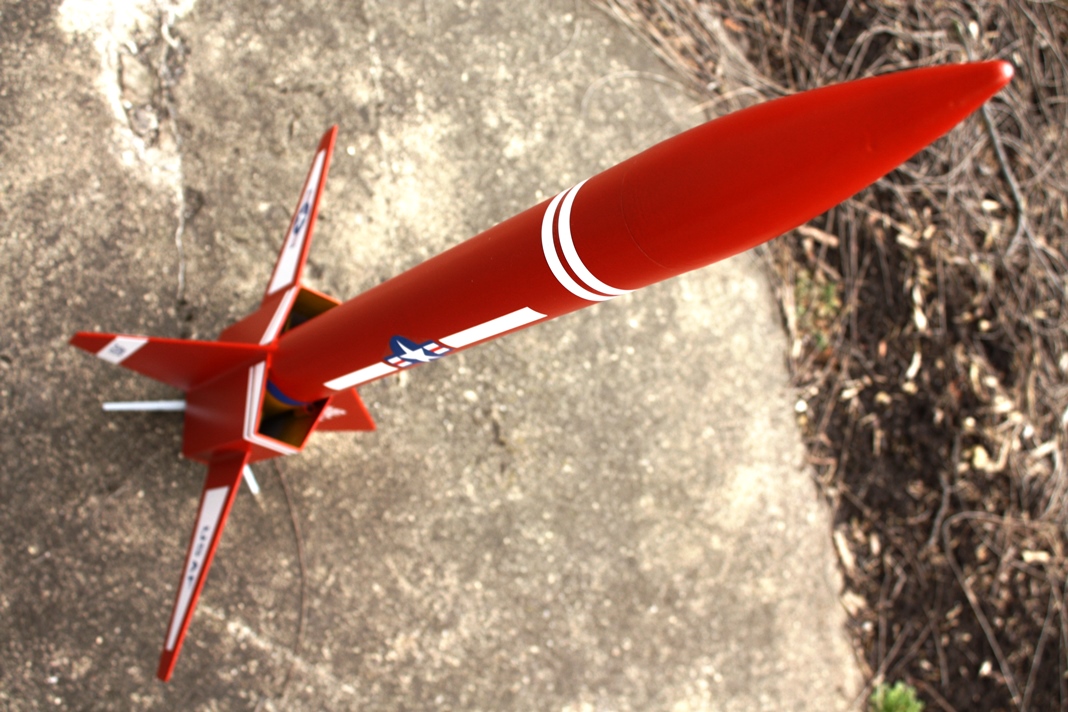

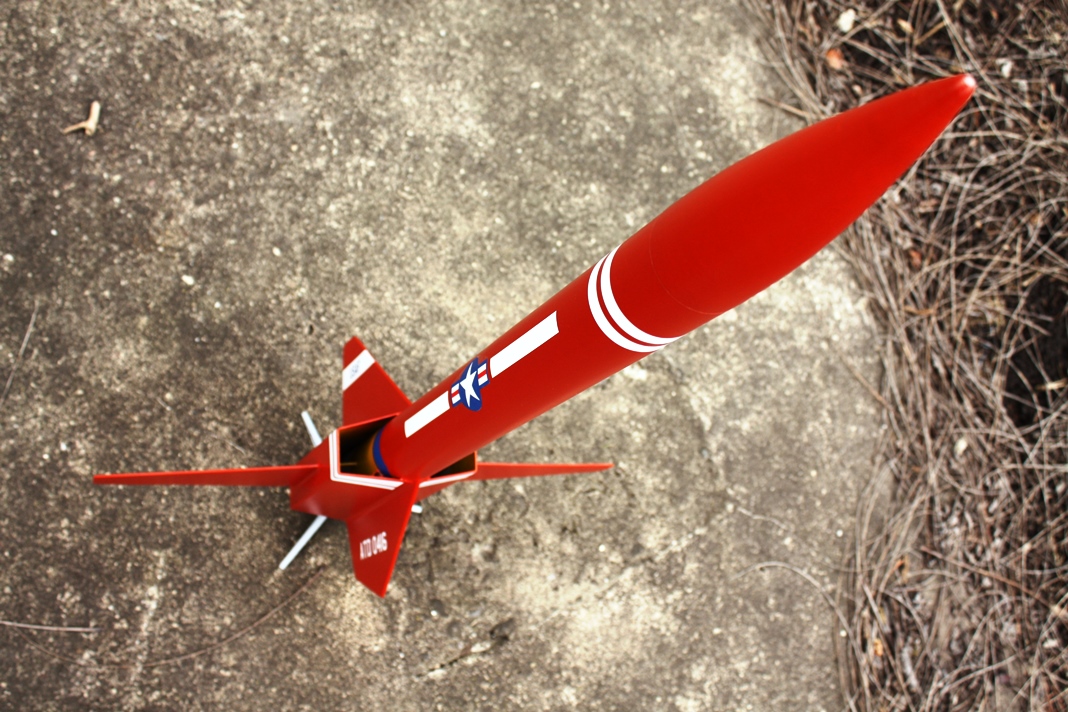

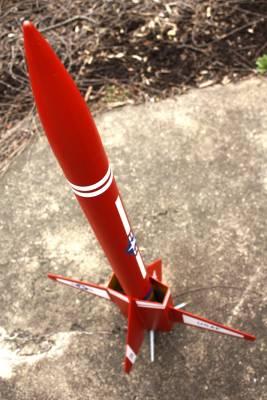

Rick Barnes's Advanced Target Drone 2.25X

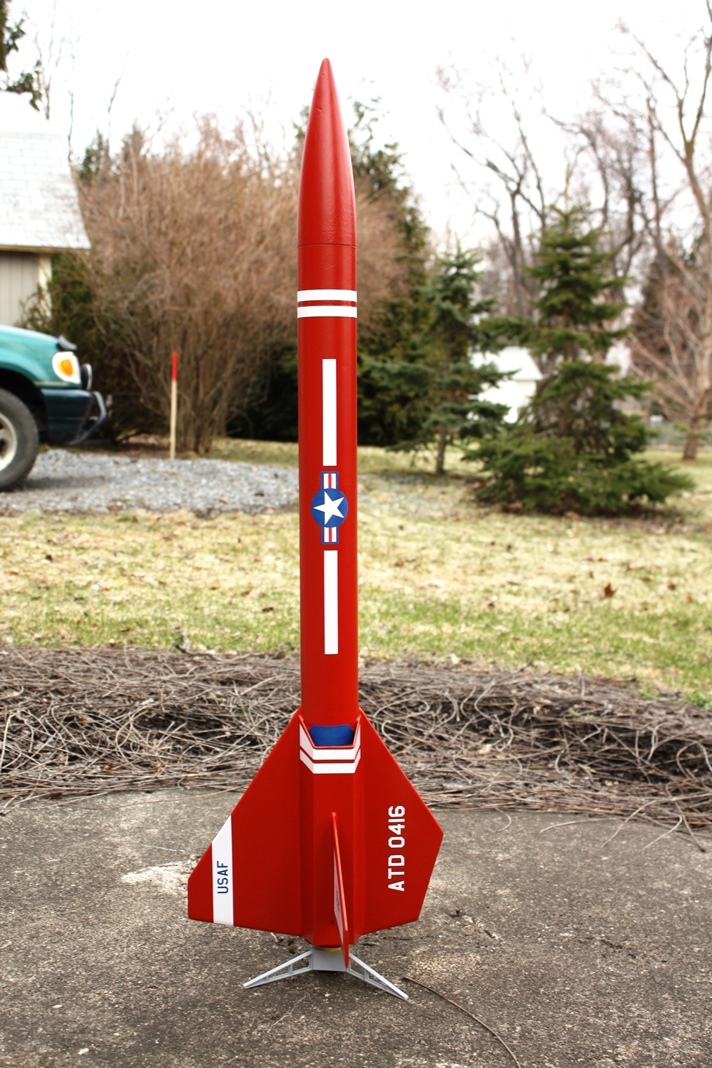

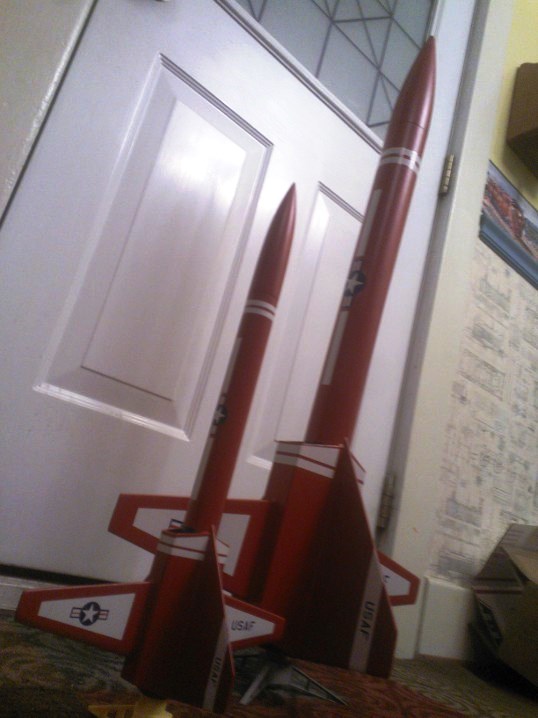

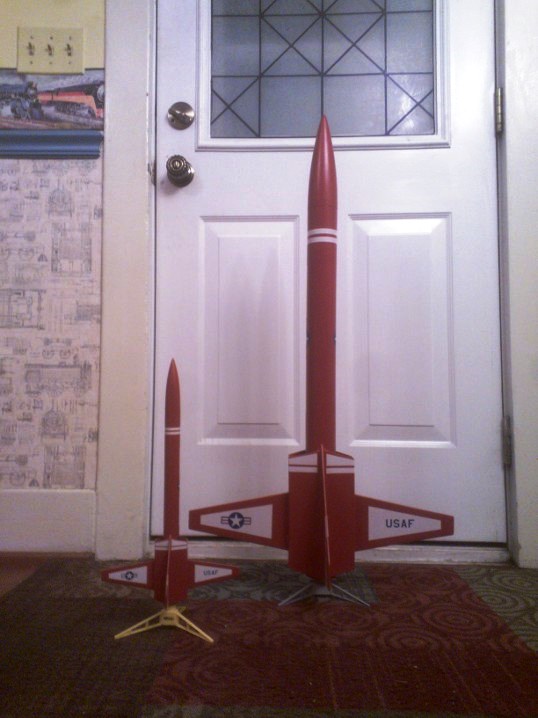

I built this upscale of an Estes Advanced Target Drone after building a clone of the original and finding that Excelsior made upscale decals in this size.  It was a little more challenging than other upscales that Ive done, insomuch as I made the body shrouds out of 1/16th ply, and designed to build it as a 3x24mm cluster while I was at it.  The added motor mounts are parallel the to the main mount in the shrouds.  It came out a little heavier than I'd hoped, at 13.5 oz, but it should fly fine on 3 D12's or a single E30 composite.





























Flights

ID
Date
Flyer
Rocket
Kit
Motors
Altitude
Action

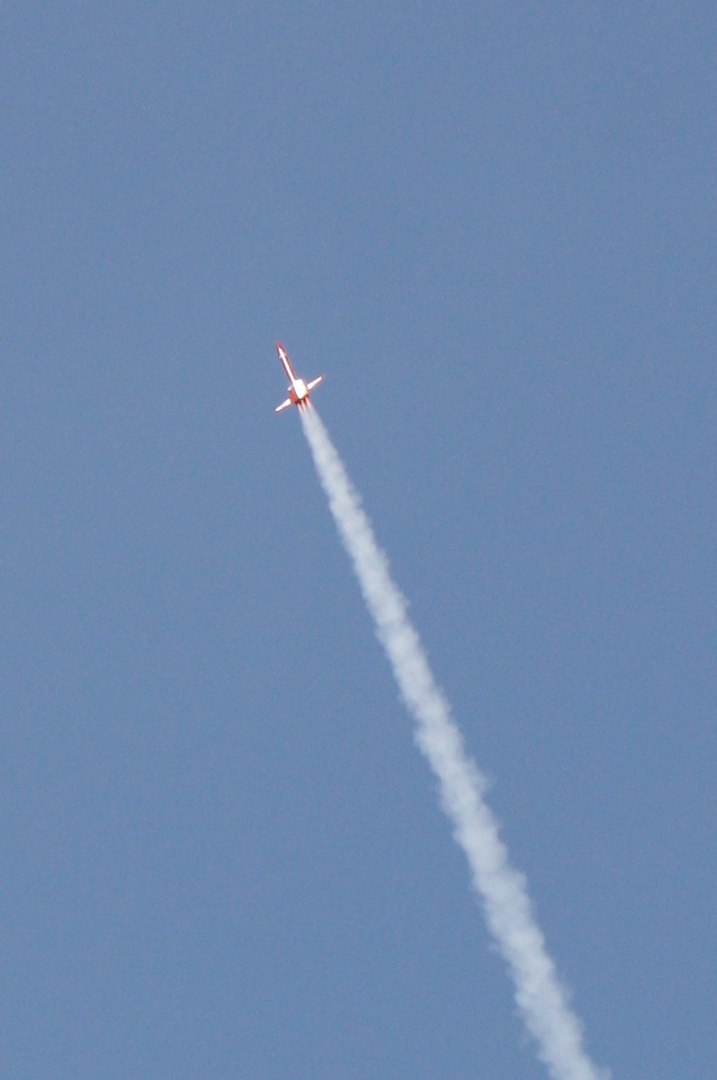

69116

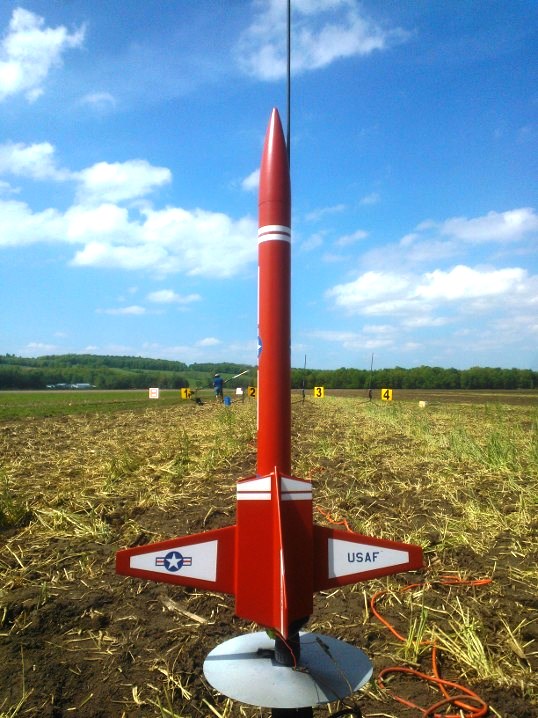

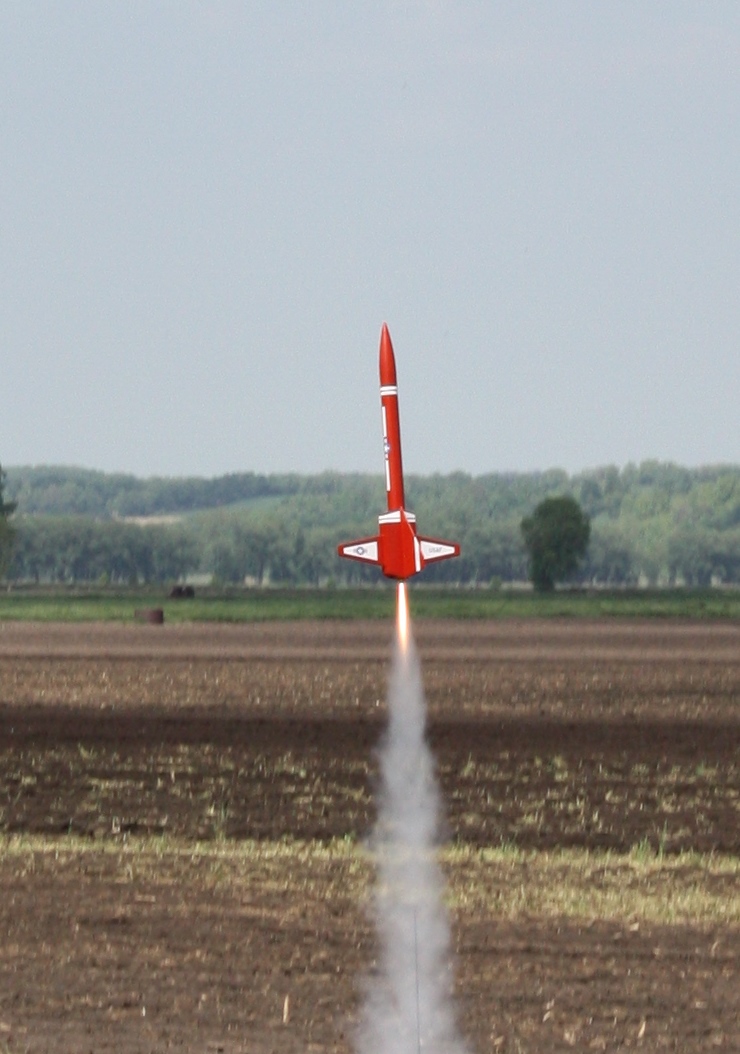

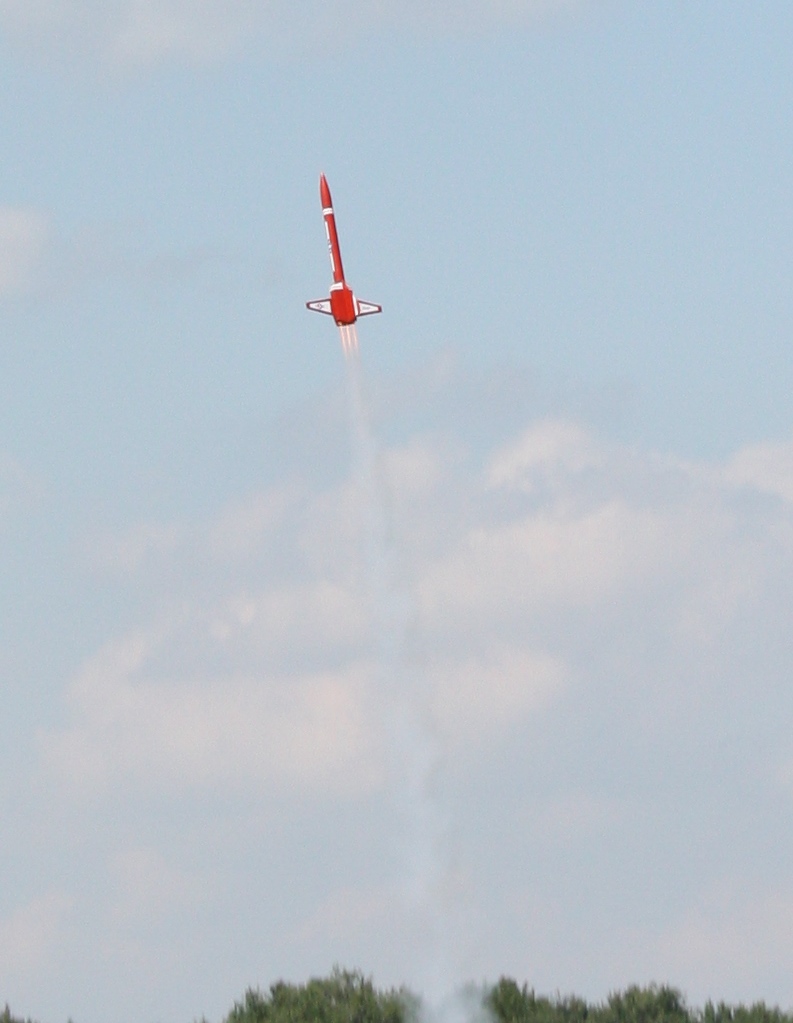

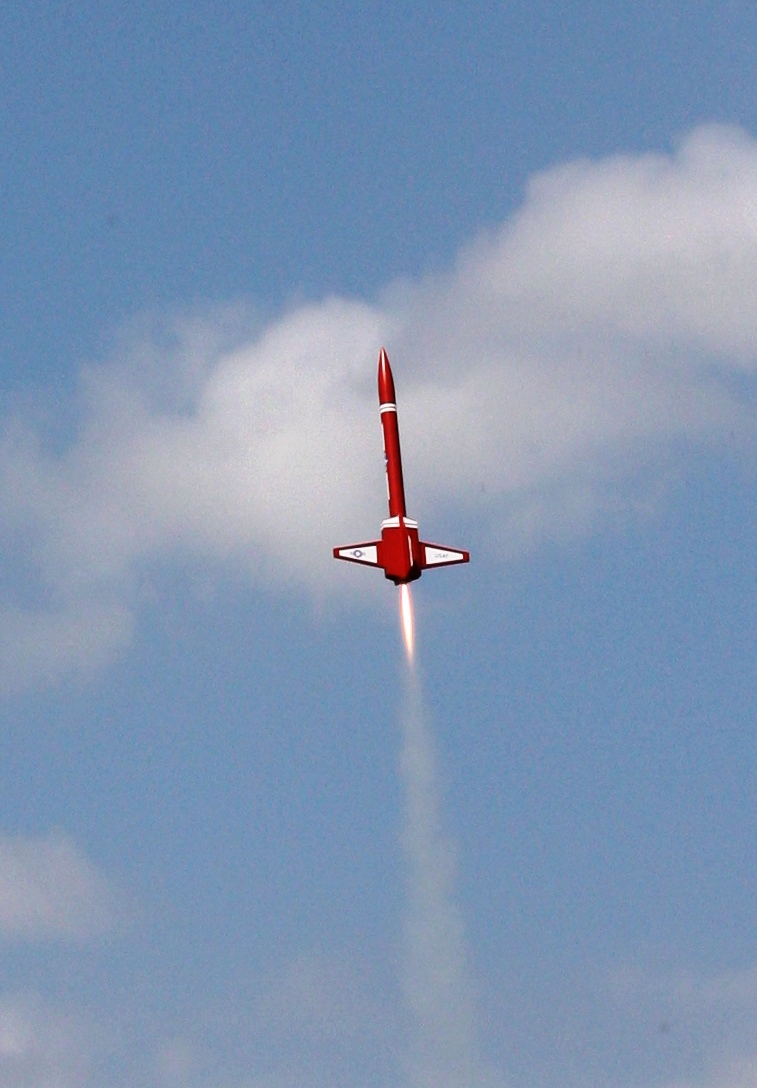

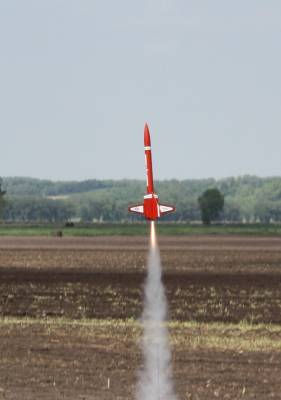

2015-08-30 photo
Rick Barnes
Advanced Target Drone 2.25X
-
2xD11-p+D12-7
900 Feet
list
68794
2015-07-26 photo
Rick Barnes
Advanced Target Drone 2.25X
-
2xD11-p+D12-7
1,000 Feet
list
68411
2015-05-17
Rick Barnes
Advanced Target Drone 2.25X
-
E20-4T
600 Feet
list
Page
of
1
Displaying records
1
-
3
of
3
