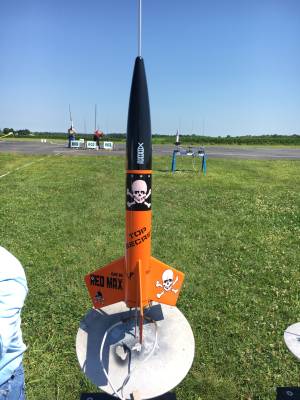

A standard Red Max kit, built with a dual 18mm motor mount and given an orange paint job.
| Flight Date: | 2019-08-02 |
| Rocket Name: | Estes Der Orange Max |
| Kit Name: | Estes - Der Red Max {Kit} (651) [2007-] |
| Flyer's Name: | Matthew Bond |
| Motors: | 2xC6-5 |
| Expected Altitude: | 1,380 Feet |
| Wind Speed: | 4.00 mph |
| Launch Site: | NARAM 61 |

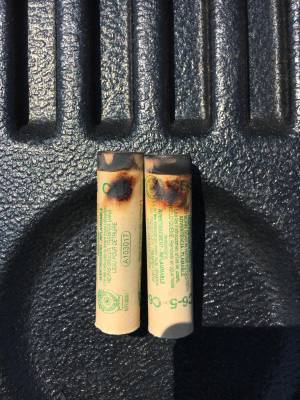

Both motors lit on the pad. Nice high arcing boost, more or less horizontal at ejection. Kevlar shock cord broke/burned through. main rocket body tumble recovered onto the tarmac, nose cone under chute recovered in the grass. Nomex heat shield charred and burned through In a couple of spots. Parachute mostly undamaged with a couple tiny melt spots. One fin popped loose, motors both scorched where they were next to each other in the motor mount. Not sure the 2/3 engine clusters work in the red max.
| Stage | Motor(s) |
|---|---|
| 1 | 2 x Estes C6-5 |
![]() |
![]() |
