Rick Barnes's Orbital Interceptor 2.6

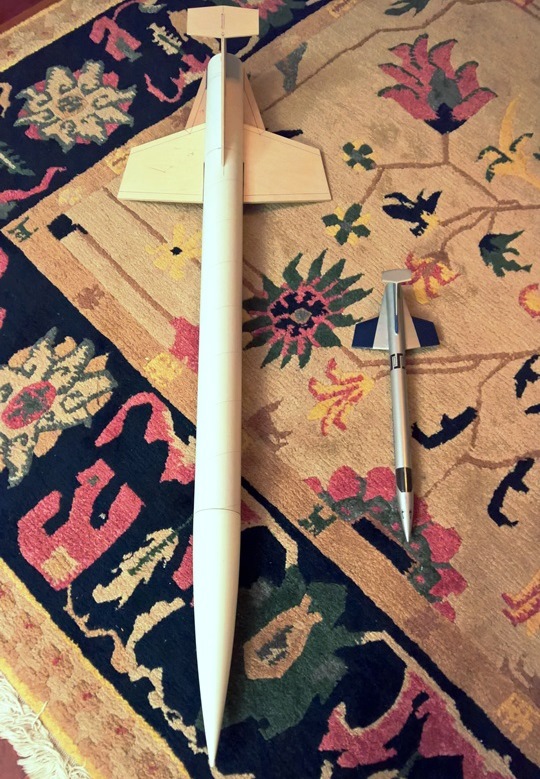

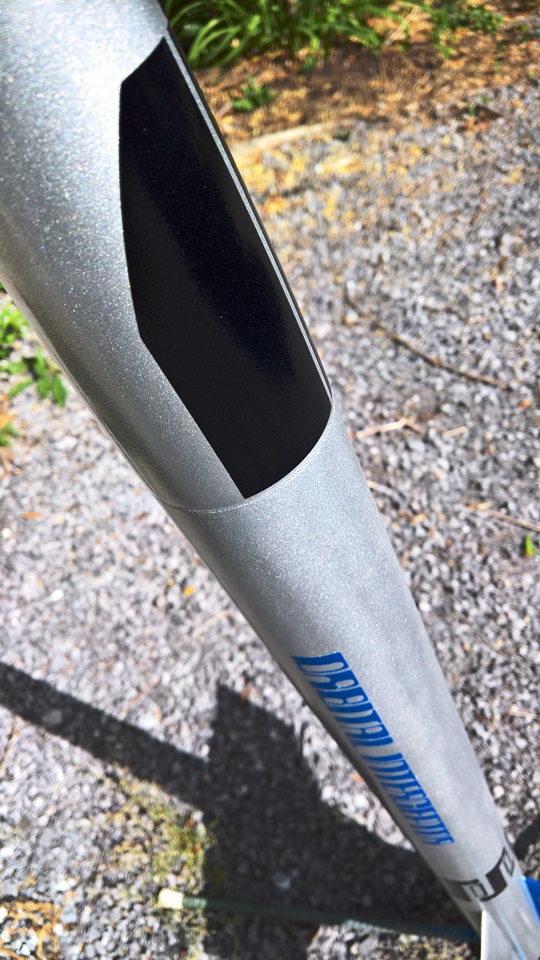

This upscale of an Estes Orbital Interceptor is built with LOC 2.6" tubing and an Aerotech nose cone.  Fins are 3/16" ply, with the exception of the tail plane (which is 1/8" ply).  The tail plane is gussetted with triangular balsa stock and tabbed onto the rudder.  Motor mount is 29mm, and can accept a 6-grain case.  This model can handle full-H motors reasonably, but a small I would be the limit.  Vinyl decals from Stickershock23.







Flights

ID
Date
Flyer
Rocket
Kit
Motors
Altitude
Action
71268
2017-04-30
Rick Barnes
Orbital Interceptor 2.6
-
G106-9
1,800 Feet
list
71264
2017-04-29
Rick Barnes
Orbital Interceptor 2.6
-
G88-7
950 Feet
list
70638
2016-08-27 photo
Rick Barnes
Orbital Interceptor 2.6
-
G106-9
-
list
70549
2016-07-31 photo
Rick Barnes
Orbital Interceptor 2.6
-
G88-7
-
list
70515
2016-07-30 photo
Rick Barnes
Orbital Interceptor 2.6
-
G88-7
-
list
Page
of
1
Displaying records
1
-
5
of
5
