Manufacturer: Estes
(OOP) Estes Prime Number Explorer

A ten finned 13mm rocket and is quite large for its motor size. Recovers via a 12 inch parachute

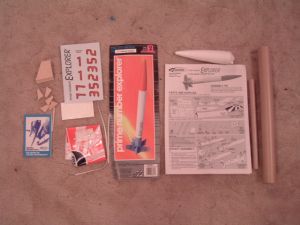

Kit consists of:

  • 1 launch lug.
  • Estes paper shock cord mount
  • Estes 12 inch parachute
  • 2 foot length elastic shock cord
  • Nose cone
  • Shroud lines
  • Body tube
  • Engine mount tube
  • Engine hook
  • Pre-cut balsa fins
  • Paper adapter rings
  • Decal sheet

To build the kit I used:

  • CA gel glue
  • Model knife
  • Aluminum oxide sand paper
  • White PVA glue
  • Enamel spray paint
  • Varnish
(OOP) Estes Prime Number Explorer

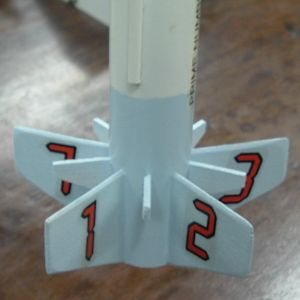

Builds pretty much like most of the basic Estes kits. The instructions are clear and straightforward. The inner motor mount tube (BT-5) is quite long, and I assume that this to allow for the smaller ejection charge on a 13mm motor. The only problem I had was filleting the fins--there are ten of them, which does not leave much room to get in and smooth over the joint's fillets. In hindsight, I would have glued on just the five larger fins and filleted them before gluing on the five smaller fins. Recovery system uses a 12 inch parachute and the standard Estes paper shock cord mount. Instead I replaced the paper mount with a Kevlar® thread tied to the upper adaptor ring and the other end tied to the shock cord. I added a snap swivel for the parachute.

The only other modification was to ditch the engine hook, which can effect the engine's thrust on 13mm motors and replace it with an engine block.

(OOP) Estes Prime Number Explorer

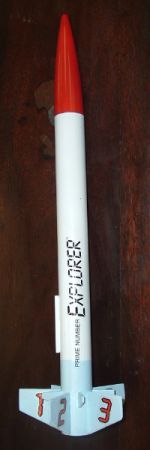

One coat of primer. Three coats of red gloss for the nose cone. Three coats of white gloss for the tube. Two coats of blue gloss to the bottom of the rocket. Waterslide decals are supplied which went on well. Finished with a coat of varnish.

Construction Rating: 4 out of 5

Flies on an A10-3T or A3-4T. I used Nomex® wadding. I've only flown on A10-3T motors. Flights are nice and straight and come off the pad at a good but trackable speed. For a 13mm motor this is a sizable rocket, but she easily grabs 200 feet.

(OOP) Estes Prime Number Explorer

Deployment on all flights so far has been past apogee by about 1 second. However, this might be due to the heavier wadding, swivel, and finish. Recovery is on a 12 inch parachute at a steady rate of descent. This rocket is too heavy for a steamer.

Flight Rating: 5 out of 5

A good size rocket that performs very well considering it is on a 13mm motor. The ten fins make it a bit unusual.

Overall Rating: 4 out of 5
