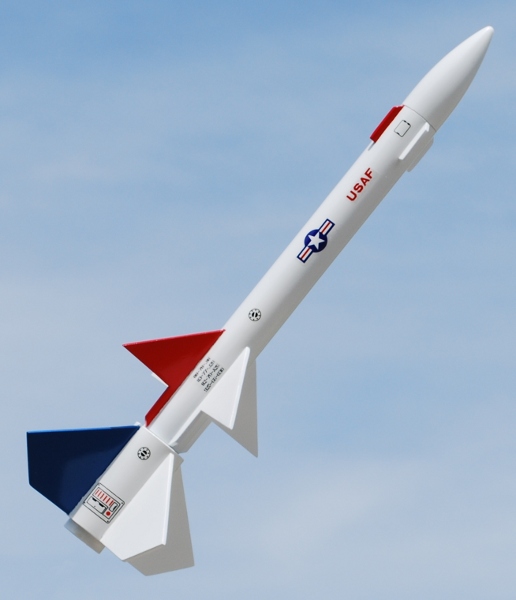

Custom Rockets - SAM-X Kit

CP Method: Rocksim/Rocksim
CP Position From Front: 8.91 inches
Decals: Waterslide
Diameter: 0.98 inches
Fin Material: Balsa
Length: 14.38 inches
Manufacturer: Custom Rockets
Model: 10029
Motor Size: 18 millimeters
Nose Cone Material: Plastic
Power: Low-Power
Product Type: Kit
Recommended Motors: B6-0/B6-6, B6-0/C6-7, C6-0/B6-6, C6-0/C6-7
Recovery: Parachute
Skill Level: 2
Status: In-Production
Style: Military, Multi-Stage
Weight: 1.60 ounces

Run Motor Simulations

  • Custom Rockets SAM-X By Royce Clay, Jr. (November 12, 2009)

    Two-stage, 12" parachute, missile-like styling. Skill level two. The kits components include: Sustainer: One body tube 9" long x 0.976 Dia. One motor tube (for 18mm motor) 2.75" long Two centering rings Four die-cut balsa fins and eight decorative fins Estes-type (approx. 12" 1/8" elastic, and three fold paper mount) parachute attachment Plastic nose cone ...

  • Custom Rockets SAM-X By Chuck Rider

    ( Contributed - by Chuck Rider - 10/20/01) Brief: Mounted sustainer fins using long edge as the root edge. Did not use the auxiliary fins. Added 0.3oz of clay to the nosecone for stability. Modifications: All modifications were made with the parts supplied in the original kit. Just mounted the sustainer fins in a different orientation and didn't use the auxiliary fins. The original ...
