Building for a NAR L1. Good Kit and goes together easy but did have warped fins out of the box. I used angle and clamps to keep them straight till the glue dried. All tubes fit together just right.
weight without engine 93oz
weight with engine 117 oz
Looks like I’ll fly this one with a J500 for my L2 also this Spring. Update, I passed my written L2 test without any problems, and flew it on a Aerotech J500G, great choice for my L2 in this Rocket.
I got a K185W, it has a 8 sec burn and should put this into the Mile high club.
UPDATE: Flew this in Orangeburg to 6700'
Reloads I have tried: I364FJ, I327DM, J500G, K185W, CTI I236
| Flight Date: | 2013-09-01 |
| Rocket Name: | HyperLOC 835 |
| Kit Name: | LOC/Precision - HyperLOC 835 |
| Flyer's Name: | Rodney Earp |
| Motors: | I305 |
| Expected Altitude: | 2,000.00 Feet |
| Launch Site: | ROSCO |
| Actual Altitude: | 1,779.00 Feet |
Got to love that black smoke on launch! Another great flight with the HyperLOC, this is the one that just keeps on giving. Straght up and arching over at apagee with deployment and a main at 400'.
Another clear day and could watch it all the way. got some good pictures before and after the main.

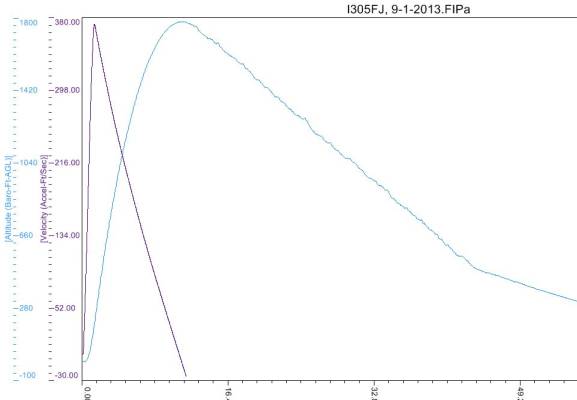

\Raven 3 files\I305FJ, 9-1-2013.FIPa
Average PreLaunch Altitude (ft) = Val: 195.00
Average PreLaunch Axial (Gs) = Val: 0.96
Average PreLaunch Axial Offset = Val: 0.96
Axial Accel (Gs) = Min: -1.50 Max: 13.63
Baro (Atm) = Min: 0.9307 Max: 0.9930
Current Draw (A) = Min: 0.00 Max: 0.00
Flight Count = Val: 65.00
Lateral Accel (Gs) = Min: -3.18 Max: 5.09
Motor Ignition Time (sec) = Val: 0.168
Temperature (F) = Min: 100.45 Max: 100.54
Time (sec) = Min: 0.000 Max: 11.730
Velocity (Accel-Ft/Sec) = Min: -1 Max: 375
Volts Battery (V) = Min: 8.32 Max: 8.32
Volts Pyro 3rd (V) = Min: 8.28 Max: 8.32
Volts Pyro 4th (V) = Min: 8.28 Max: 8.32
Volts Pyro Apogee (V) = Min: 8.32 Max: 8.32
Volts Pyro Main (V) = Min: 8.28 Max: 8.28
[Altitude (Accel-Ft)] = Min: 0 Max: 1869
[Altitude (Baro-Ft-AGL)] = Min: 0 Max: 1779
[Altitude (Baro-Ft-ASL)] = Min: 195 Max: 1974
[Velocity (Accel-Ft/Sec)] = Min: -25 Max: 373
[Velocity (Accel-MPH)] = Min: -17 Max: 254
| Stage | Motor(s) |
|---|---|
| 1 | Aerotech I305FJ |
