Rich DeAngelis's Interceptor
Manufacturer:Estes
Diameter:1.3000 inches
Length:26.0000 inches
Skill Level:2
Style:Futuristic/Exotic

 The Interceptor: This rocket kit is the new release of the Estes Interceptor. It flies on 18mm B and C motors.  This kit was modified with an ejection-gas baffle and Kevlar shock cord mount, and an Iris Altimeter Payload Section. After 6 months, it's finally ready. Construction went well, but painting using bargain-price Home Depot paint resulted in "orange peel" finish, which had to be sanded off - TWICE, and re-applied. The paint then reacted with the primer (SAME BRAND!!) and crinkled and cracked the finish. Re-sanded again and then used the expensive but acceptable Testors paint for $5 per 3 oz can. Clear-coat, decals, then 3 more clear-coats and finally it's done. With the generous glue, extra paint and the added electronics bay, she weighs in at 164.5 grams (5.6 oz.) and is 3.2" longer than stock. I'll plan to use the shorter ejection motors than recommended, just in case it's a little too heavy. Typically for me, this model only passed a string-stability test after I added 17 grams of nose-weight on the base of the nosecone. (Am I doing them wrong??) We'll see how well she flies, but she sure is a pretty gal!

 We DID see how she flies, and it wasn't pretty. This model is grossly overweight.  The baffle (10 grams?), payload section (19 grams), and the heavy nose-weight (17 grams) makes this too much for even a C6-3 motor. I'm going to send this up on a D10 just to see how well she can fly. Then I'm going to have to take out that nose-weight and see if it's stable enough for flight, I expect it to fly better that way. If it does not and it is destroyed, at least I'll have that one good D-flight to remember.

 With the Apogee (Aerotek) D10 motor, this model has flown This rocket has flown higher than the St. Louis Gateway Arch, the Singer building in NY, NY, and the Chicago Temple Building.

 I won't want to fly this on a regular basis using the $10 apogee motors though, so instead I hatched a plan to add two small A10-3T boosters on the back, for a total impulse with a C6 motor of 26. The parts for the "solid-rocket-boosters" were obtained from two Estes 220 Swift rockets. I'm waiting to see how well it will fly without the nose-weight before proceeding with this plan. It would be my first cluster rocket project.

Interceptor Top view
Interceptor Bottom View

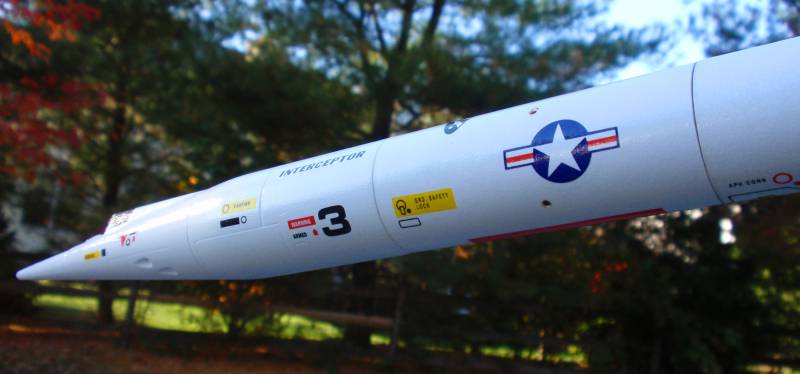

Interceptor Iris Payload
Interceptor Tail Cone
Interceptor Wing Bottoms

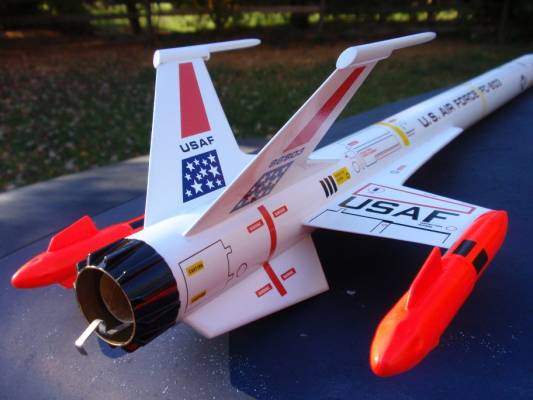

Interceptor Tail View
Interceptor Wings
Interceptor Nose-end View
Estes Interceptor, powered by a C6-3, heads out on a mission
