Semroc Hawk

Semroc - Hawk {Kit} (KV-65)

Contributed by Tyler Jones

Construction Rating: starstarstarstarstar
Flight Rating: starstarstar_borderstar_borderstar_border
Overall Rating: starstarstarstarstar_border
Diameter: 0.74 inches
Length: 12.40 inches
Manufacturer: Semroc

The Hawk is a boost glider that uses a rocket engine to get itself in the air. It is a "Retro-Repro" of an older rocket. Semroc is selling them for $7.50 right now so I decided to pick one up.

When I bought the kit I figured there wouldn't be very many pieces. I got it and found only 5 parts in the whole kit.

It comes with:

  • 1 BT-20J body tube (2 3/4" Long)
  • 1 1/8" launch lug (1 1/4" Long)
  • 2 balsa wood sheets (laser cut)
  • 1 rolled balsa nose cone
  • 1 small decal that says Hawk
  • and the instructions

The instructions are perfect. They give you each step in order with illustrations. They even give you boxes to check after each step. At the beginning of all of Semroc's "Retro-Repro" rockets instructions, there is an interesting description of the company that originally made it.

The fins were easily taken out of the balsa sheet with an X-Acto knife. Some of them just fell out. I then proceeded to sand the parts smooth with fine sandpaper. The balsa wood parts have lines on them to show you where to glue them to other parts, just be careful that you don't sand to much or the lines will disappear. The balsa wood included in this kit is nice and hard, but you still need to pay attention to how and where you are sanding.

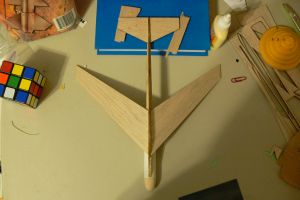

Attaching the wings is a little tricky but was not a hassle. You are supposed to invert the assembly in order for the body tube to glue on properly. You also attach the wings at this point. It is hard to get the wings to stay in place while they are gluing (if you're using wood glue), but I figured out a way to make it easier. Just apply the glue and wait a minute or two before attaching the wings. (This also works great when gluing on the stabilizer tips)

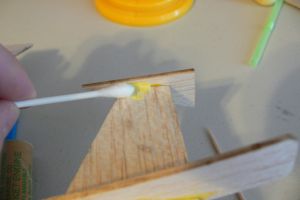

Once you have finished putting everything together you then need to add fillets to all of the joints. I found that toothpicks and Q-tips were invaluable in this step.

After that you need to sand all of the edges smooth and create an airfoil. (Airfoiling is optional.) This step was easy enough to do. I had to find a picture of an airfoil in order to figure out what I needed to do, but after that it was easy. I then tested it by flying it off of my second story deck into the grass. My glider nosedived into the grass at a right angle on the first try. I used small paper clips as weights on the rear stabilizer. I taped them on so that I could adjust them later (to make it turn). After two more throws it was ready.

I am amazed at how sturdy it is. I have never built anything out of balsa wood before and expected it to be flimsy.

All I needed to build this rocket was an X-Acto knife, some sandpaper, wood glue, and paper clips. (I'm sure you could find something better.)

Semroc HawkSemroc Hawk

Semroc HawkSemroc Hawk

With boost gliders painting is not recommended. It will cause them to glide for a shorter amount of time. It is recommended that you put one thin layer of clear coat on though, in order to protect the rocket. I did not clear coat my rocket because I didn't have any laying around and didn't have any time to use it (as the launch was the next day).

Construction Rating: 5 out of 5

The recommended motors for this kit are A8-3s and 1/2A6-2s. I did not have any 1/2A6-2s so I used an A8-3. I set it up at the launch put and got ready to fly. When it launched it flew straight up, no circles, loop-de-loops or anything. It was perfect. Then the engine burned out and the rocket continued upward. Right at apogee the ejection charge went off. The ejection charge was so powerful it broke off the tail section! It may have been the engine hitting the rear part of the fuselage as I can see a little bit of damage there. Then the rocket came down, ever so slowly, fluttering to the ground. I was so mad! That wasn't supposed to happen. But I have heard that Estes engines, which are what I used, can have an overly energetic ejection charge. I'll have to reinforce it with something next time, if there is a next time. Oh well, I pretty sure it's repairable so I'll get on that.

It went up so straight that the two broken pieces landed within 15 feet of the launch pad!

Semroc HawkSemroc Hawk

Flight Rating: 2 out of 5

I feel that Semroc has made a very good kit with easy to follow directions. The balsa might just be a little bit too weak to handle the forces of rocket flight though. I am going to try some of Quest's engines in it and see what happens. Although it may have that one problem I'm sure it can be overcome somehow so I am still going to recommend it to you. It is a fun kit to build and a great thing to launch, at least from what I saw.

Overall Rating: 4 out of 5
