Semroc Hawk

Semroc - Hawk {Kit} (KV-65)

Contributed by Robert Gustin

Construction Rating: starstarstarstarstar
Flight Rating: starstarstarstarstar_border
Overall Rating: starstarstarstarstar_border
Diameter: 0.74 inches
Length: 12.40 inches
Manufacturer: Semroc
Semroc Hawk

Brief:
The Semroc Hawk RetroRepro boost glider is a very simple to build and easy to fly rocket boosted glider. Based on the 1965 AMROCS Hawk, it ejects its motor to establish a stable, balanced glide.

Construction:
In the well packaged kit you get:

  • 1 Instruction set
  • 2 3/32" balsa part sheets
  • 1 BT-20 motor tube
  • 1 Balsa nose cone
  • 1 1/8" launch lug
  • 1 Waterslide decal
Semroc HawkSemroc Hawk

The kit instructions are practically flawless. If you can follow them, you can build this glider. The lasered lines in the stabilizer and small rudders are really a nice feature. It makes assembly in those areas very simple. One small point, the instructions say to round edges and airfoil wings after assembly is complete. I disagree. Do the sanding before assembly when parts are much more accessible and easier to sand.

Finishing:
In gliders, paint is not normally used. The extra weight will reduce glide time and performance. While some like to fly gliders "nekkid", I like to use fabric dye to color balsa parts before assembly. Of course you must do all sanding before the dying process. After final assembly, 2 coats of thinned, clear dope make for a nice smooth finish without too much added weight.

Construction Rating: 5 out of 5

Flight:
First flight was good. I had no 1/2A6-2 or A8-3 motors so I used a 13mm 1/2A3-2T. Using an adapter I built (see pics) to pop out of the Hawk motor mount, the 13mm motor boosted the small glider beautifully. Boost was nice and vertical, at ejection a nice loud pop, and my motor adapter floated down on its mylar streamer. The glider however was a bit nose heavy and landed not too long after the motor pod.

Second flight: tail weight added and same motor. Still a straight boost. Much better glide, though still a touch nose heavy.

Third flight: more tail weight added plus on wing tip to aid in turn rate. On boost, it arced over some but did not affect the boost very much. Much better glide, with a nice gentle left turn. Stayed up for about 45 seconds.

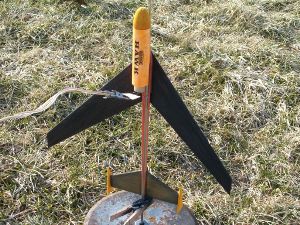

Semroc HawkSemroc Hawk Semroc Hawk

Recovery:
I like the motor ejection for transition to glide. It is somewhat dangerous as on all three of my flights, I could see where the motor had scraped on the tail boom. The top side of the wings, right next to the main boom, may need some mylar tape, or some other type of protection from the motor exhaust. After just three flights, I had a nice burned section on one wing.

Flight Rating: 4 out of 5

Summary:
I like this glider kit very much. The nice laser cut parts and easy to follow instructions make this kit a certain favorite for anyone who like to fly gliders. The only CON I have for the whole kit is the one part in the instructions that say to sand all edges after final assembly. Much too difficult with this small glider.

Overall Rating: 4 out of 5
