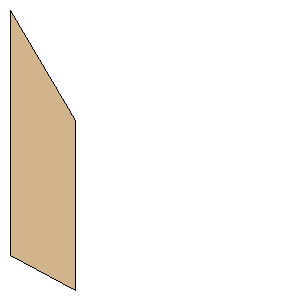

EAC Hyperion Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Aerospace Specialty Products | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 1.9291 inches (48.9991 mm) | | Tip Chord: | 1.3307 inches (33.7998 mm) | | Sweep Distance: | 0.8661 inches (21.9989 mm) | | SemiSpan: | 0.5118 inches (12.9997 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (12.9997 mm, 21.9989 mm) | | Point 3: | (12.9997 mm, 55.7987 mm) | | Point 4: | (0.0000 mm, 48.9991 mm) | | Width: | 0.5118 inches (12.9997 mm) | | Height: | 2.1968 inches (55.7987 mm) |
