Tiny Tim Smoke Freeform Fin Set Freeform Fin Set| Manufacturer: | Aerospace Specialty Products | | Part Number: | FGMD16 | | Style: | Freeform Fin Set | | Material: | Balsa |

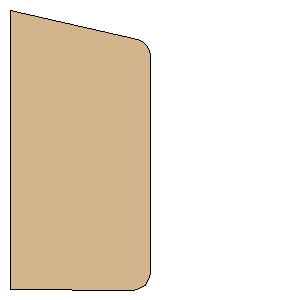

Download as PDF | Point 1: | (0.0000 mm, 107.9500 mm) | | Point 2: | (47.6456 mm, 108.0030 mm) | | Point 3: | (50.0784 mm, 107.5210 mm) | | Point 4: | (52.1411 mm, 106.1450 mm) | | Point 5: | (53.5193 mm, 104.0830 mm) | | Point 6: | (54.0027 mm, 101.6510 mm) | | Point 7: | (54.0049 mm, 17.6884 mm) | | Point 8: | (53.6516 mm, 15.5997 mm) | | Point 9: | (52.6309 mm, 13.7434 mm) | | Point 10: | (51.0565 mm, 12.3262 mm) | | Point 11: | (49.1035 mm, 11.5057 mm) | | Point 12: | (0.0000 mm, 0.0000 mm) | | Width: | 4.2500 inches (107.9500 mm) | | Height: | 4.2521 inches (108.0030 mm) |
