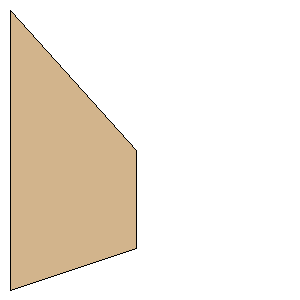

Delta X-15 Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Apogee Components | | Part Number: | Micro V2 fins | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 1.2500 inches (31.7500 mm) | | Tip Chord: | 0.4375 inches (11.1125 mm) | | Sweep Distance: | 0.6250 inches (15.8750 mm) | | SemiSpan: | 0.5625 inches (14.2875 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (14.2875 mm, 15.8750 mm) | | Point 3: | (14.2875 mm, 26.9875 mm) | | Point 4: | (0.0000 mm, 31.7500 mm) | | Width: | 0.5625 inches (14.2875 mm) | | Height: | 1.2500 inches (31.7500 mm) |
