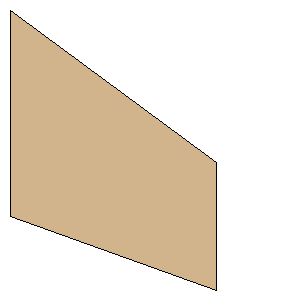

plausible.rkt Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Apogee Components | | Part Number: | Micro V2 fins | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 3.2500 inches (82.5500 mm) | | Tip Chord: | 2.0000 inches (50.8000 mm) | | Sweep Distance: | 2.4005 inches (60.9727 mm) | | SemiSpan: | 3.2500 inches (82.5500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (82.5500 mm, 60.9727 mm) | | Point 3: | (82.5500 mm, 111.7727 mm) | | Point 4: | (0.0000 mm, 82.5500 mm) | | Width: | 3.2500 inches (82.5500 mm) | | Height: | 4.4005 inches (111.7727 mm) |
