Rocketry Parts Database >> Fins >>

Estes - Nike Apache Trapezoid Fi Trapezoid Fin Set

Manufacturer:Apogee Components
Part Number:
Style:Trapezoid Fin Set
Material:Balsa

Download as PDF

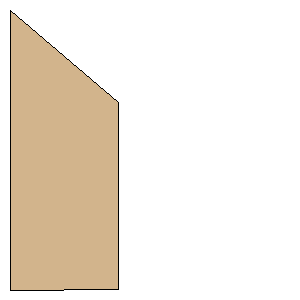

Root Chord:1.5000 inches (38.1000 mm)
Tip Chord:1.0000 inches (25.4000 mm)
Sweep Distance:0.4976 inches (12.6390 mm)
SemiSpan:0.5800 inches (14.7320 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(14.7320 mm, 12.6390 mm)
Point 3:(14.7320 mm, 38.0390 mm)
Point 4:(0.0000 mm, 38.1000 mm)
Width:0.5800 inches (14.7320 mm)
Height:1.5000 inches (38.1000 mm)

Related Designs:
