Rocketry Parts Database >> Fins >>

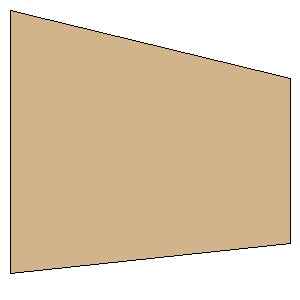

Shrox Industria Helios/DRSP (Dee Trapezoid Fin Set

Manufacturer:Apogee Components
Part Number:15531
Style:Trapezoid Fin Set
Material:Balsa

Download as PDF

Root Chord:2.0000 inches (50.8000 mm)
Tip Chord:1.2500 inches (31.7500 mm)
Sweep Distance:0.5200 inches (13.2080 mm)
SemiSpan:2.1250 inches (53.9750 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(53.9750 mm, 13.2080 mm)
Point 3:(53.9750 mm, 44.9580 mm)
Point 4:(0.0000 mm, 50.8000 mm)
Width:2.1250 inches (53.9750 mm)
Height:2.0000 inches (50.8000 mm)
