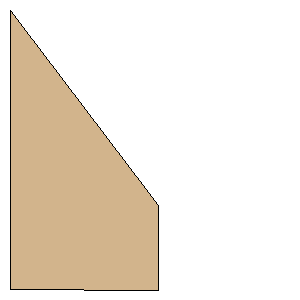

loc_fantom_mini.rkt Trapezoid Fi Trapezoid Fin Set| Manufacturer: | Apogee Components | | Part Number: | Micro V2 fins | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 1.9685 inches (49.9999 mm) | | Tip Chord: | 0.5906 inches (15.0012 mm) | | Sweep Distance: | 1.3780 inches (35.0012 mm) | | SemiSpan: | 1.0433 inches (26.4998 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (26.4998 mm, 35.0012 mm) | | Point 3: | (26.4998 mm, 50.0024 mm) | | Point 4: | (0.0000 mm, 49.9999 mm) | | Width: | 1.0433 inches (26.4998 mm) | | Height: | 1.9686 inches (50.0024 mm) |
