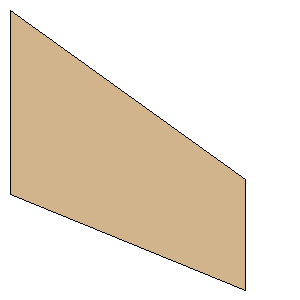

Saturn 1B (1/35) Trapezoid Fin S Trapezoid Fin Set| Manufacturer: | Apogee Components | | Part Number: | 1B fins | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 2.5000 inches (63.5000 mm) | | Tip Chord: | 1.5000 inches (38.1000 mm) | | Sweep Distance: | 2.3037 inches (58.5140 mm) | | SemiSpan: | 3.2000 inches (81.2800 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (81.2800 mm, 58.5140 mm) | | Point 3: | (81.2800 mm, 96.6140 mm) | | Point 4: | (0.0000 mm, 63.5000 mm) | | Width: | 3.2000 inches (81.2800 mm) | | Height: | 3.8037 inches (96.6140 mm) |
