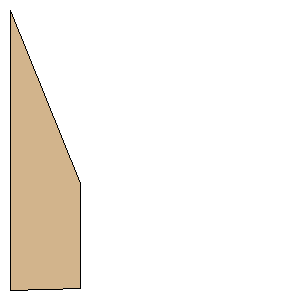

AGM1313-Lucky-Striker-w-Alt.rkt Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Apogee Components | | Part Number: | 15690 | | Style: | Trapezoid Fin Set | | Material: | Basswood |
Download as PDF | Root Chord: | 4.0000 inches (101.6000 mm) | | Tip Chord: | 1.5000 inches (38.1000 mm) | | Sweep Distance: | 2.4751 inches (62.8675 mm) | | SemiSpan: | 1.0000 inches (25.4000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (25.4000 mm, 62.8675 mm) | | Point 3: | (25.4000 mm, 100.9675 mm) | | Point 4: | (0.0000 mm, 101.6000 mm) | | Width: | 1.0000 inches (25.4000 mm) | | Height: | 4.0000 inches (101.6000 mm) |
