AGM1313-Lucky-Striker-w-Alt.rkt Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Apogee Components | | Part Number: | 15690 | | Style: | Trapezoid Fin Set | | Material: | Basswood |

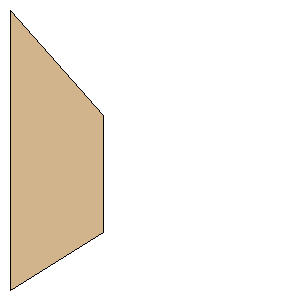

Download as PDF | Root Chord: | 3.0000 inches (76.2000 mm) | | Tip Chord: | 1.2500 inches (31.7500 mm) | | Sweep Distance: | 1.1353 inches (28.8366 mm) | | SemiSpan: | 1.0000 inches (25.4000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (25.4000 mm, 28.8366 mm) | | Point 3: | (25.4000 mm, 60.5866 mm) | | Point 4: | (0.0000 mm, 76.2000 mm) | | Width: | 1.0000 inches (25.4000 mm) | | Height: | 3.0000 inches (76.2000 mm) |
