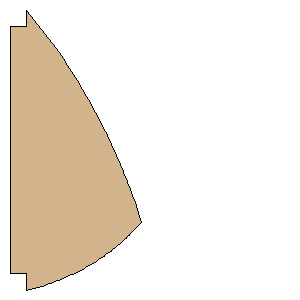

The Evil Dr. Manchu's Avenging P Freeform Fin Set

Manufacturer:bav
Part Number:Quasi
Style:Freeform Fin Set
Material:Aircraft plywood (Birch)

Download as PDF

Point 1:(0.0000 mm, 184.1500 mm)
Point 2:(12.7000 mm, 184.1500 mm)
Point 3:(12.7000 mm, 196.8500 mm)
Point 4:(26.4081 mm, 193.1771 mm)
Point 5:(27.9770 mm, 192.6924 mm)
Point 6:(29.5406 mm, 192.1909 mm)
Point 7:(31.0987 mm, 191.6725 mm)
Point 8:(32.6512 mm, 191.1374 mm)
Point 9:(34.1978 mm, 190.5855 mm)
Point 10:(35.7383 mm, 190.0171 mm)
Point 11:(37.2727 mm, 189.4321 mm)
Point 12:(38.8006 mm, 188.8305 mm)
Point 13:(40.3220 mm, 188.2126 mm)
Point 14:(41.8367 mm, 187.5783 mm)
Point 15:(43.3444 mm, 186.9277 mm)
Point 16:(44.8450 mm, 186.2609 mm)
Point 17:(46.3383 mm, 185.5779 mm)
Point 18:(47.8242 mm, 184.8790 mm)
Point 19:(49.3025 mm, 184.1640 mm)
Point 20:(50.7730 mm, 183.4332 mm)
Point 21:(52.2355 mm, 182.6865 mm)
Point 22:(53.6899 mm, 181.9242 mm)
Point 23:(55.1360 mm, 181.1462 mm)
Point 24:(56.5737 mm, 180.3527 mm)
Point 25:(58.0027 mm, 179.5437 mm)
Point 26:(59.4229 mm, 178.7194 mm)
Point 27:(60.8341 mm, 177.8799 mm)
Point 28:(62.2362 mm, 177.0251 mm)
Point 29:(63.6290 mm, 176.1554 mm)
Point 30:(65.0124 mm, 175.2706 mm)
Point 31:(66.3862 mm, 174.3710 mm)
Point 32:(67.7502 mm, 173.4567 mm)
Point 33:(69.1042 mm, 172.5277 mm)
Point 34:(70.4482 mm, 171.5842 mm)
Point 35:(71.7819 mm, 170.6262 mm)
Point 36:(73.1052 mm, 169.6540 mm)
Point 37:(74.4180 mm, 168.6675 mm)
Point 38:(75.7200 mm, 167.6670 mm)
Point 39:(77.0112 mm, 166.6525 mm)
Point 40:(78.2914 mm, 165.6241 mm)
Point 41:(79.5605 mm, 164.5820 mm)
Point 42:(80.8182 mm, 163.5262 mm)
Point 43:(82.0645 mm, 162.4570 mm)
Point 44:(83.2992 mm, 161.3745 mm)
Point 45:(84.5222 mm, 160.2786 mm)
Point 46:(85.7333 mm, 159.1697 mm)
Point 47:(86.9324 mm, 158.0478 mm)
Point 48:(88.1193 mm, 156.9130 mm)
Point 49:(89.2939 mm, 155.7655 mm)
Point 50:(90.4561 mm, 154.6054 mm)
Point 51:(91.6057 mm, 153.4329 mm)
Point 52:(92.7426 mm, 152.2480 mm)
Point 53:(93.8667 mm, 151.0510 mm)
Point 54:(94.9778 mm, 149.8419 mm)
Point 55:(98.4250 mm, 146.0500 mm)
Point 56:(97.1704 mm, 142.1069 mm)
Point 57:(96.3300 mm, 139.4930 mm)
Point 58:(95.4740 mm, 136.8841 mm)
Point 59:(94.6023 mm, 134.2805 mm)
Point 60:(93.7150 mm, 131.6821 mm)
Point 61:(92.8121 mm, 129.0892 mm)
Point 62:(91.8936 mm, 126.5016 mm)
Point 63:(90.9597 mm, 123.9197 mm)
Point 64:(90.0102 mm, 121.3434 mm)
Point 65:(89.0453 mm, 118.7729 mm)
Point 66:(88.0649 mm, 116.2081 mm)
Point 67:(87.0692 mm, 113.6494 mm)
Point 68:(86.0581 mm, 111.0966 mm)
Point 69:(85.0318 mm, 108.5500 mm)
Point 70:(83.9901 mm, 106.0096 mm)
Point 71:(82.9332 mm, 103.4755 mm)
Point 72:(81.8611 mm, 100.9477 mm)
Point 73:(80.7739 mm, 98.4265 mm)
Point 74:(79.6715 mm, 95.9118 mm)
Point 75:(78.5540 mm, 93.4038 mm)
Point 76:(77.4215 mm, 90.9026 mm)
Point 77:(76.2740 mm, 88.4082 mm)
Point 78:(75.1116 mm, 85.9207 mm)
Point 79:(73.9342 mm, 83.4403 mm)
Point 80:(72.7419 mm, 80.9669 mm)
Point 81:(71.5348 mm, 78.5008 mm)
Point 82:(70.3130 mm, 76.0420 mm)
Point 83:(69.0764 mm, 73.5906 mm)
Point 84:(67.8250 mm, 71.1466 mm)
Point 85:(66.5591 mm, 68.7102 mm)
Point 86:(65.2785 mm, 66.2814 mm)
Point 87:(63.9833 mm, 63.8604 mm)
Point 88:(62.6737 mm, 61.4472 mm)
Point 89:(61.3496 mm, 59.0419 mm)
Point 90:(60.0110 mm, 56.6446 mm)
Point 91:(58.6581 mm, 54.2553 mm)
Point 92:(57.2908 mm, 51.8743 mm)
Point 93:(55.9093 mm, 49.5015 mm)
Point 94:(54.5136 mm, 47.1370 mm)
Point 95:(53.1037 mm, 44.7810 mm)
Point 96:(51.6796 mm, 42.4335 mm)
Point 97:(50.2415 mm, 40.0945 mm)
Point 98:(48.7894 mm, 37.7643 mm)
Point 99:(47.3233 mm, 35.4428 mm)
Point 100:(45.8433 mm, 33.1301 mm)
Point 101:(44.3494 mm, 30.8264 mm)
Point 102:(42.8417 mm, 28.5317 mm)
Point 103:(41.3203 mm, 26.2461 mm)
Point 104:(39.7851 mm, 23.9697 mm)
Point 105:(38.2363 mm, 21.7025 mm)
Point 106:(36.6740 mm, 19.4447 mm)
Point 107:(12.7000 mm, -12.7000 mm)
Point 108:(12.7000 mm, 0.0000 mm)
Point 109:(0.0000 mm, 0.0000 mm)
Width:7.2500 inches (184.1500 mm)
Height:8.2500 inches (209.5500 mm)
