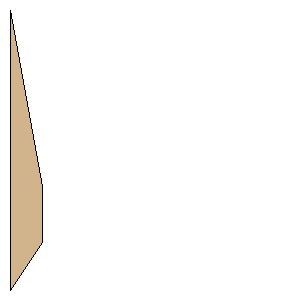

Longshot Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | 1/16 Aircraft Plywood |
Download as PDF | Root Chord: | 20.3750 inches (517.5250 mm) | | Tip Chord: | 4.0200 inches (102.1080 mm) | | Sweep Distance: | 12.8750 inches (327.0250 mm) | | SemiSpan: | 2.4000 inches (60.9600 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (60.9600 mm, 327.0250 mm) | | Point 3: | (60.9600 mm, 429.1330 mm) | | Point 4: | (0.0000 mm, 517.5250 mm) | | Width: | 2.4000 inches (60.9600 mm) | | Height: | 20.3750 inches (517.5250 mm) |
