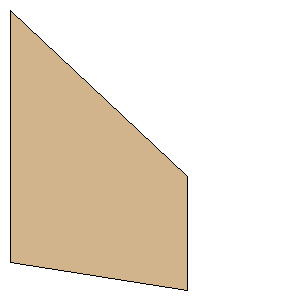

Prometheus II Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | 1/16 Aircraft Plywood |
Download as PDF | Root Chord: | 17.5000 inches (444.5000 mm) | | Tip Chord: | 7.8750 inches (200.0250 mm) | | Sweep Distance: | 11.5000 inches (292.1000 mm) | | SemiSpan: | 12.2500 inches (311.1500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (311.1500 mm, 292.1000 mm) | | Point 3: | (311.1500 mm, 492.1250 mm) | | Point 4: | (0.0000 mm, 444.5000 mm) | | Width: | 12.2500 inches (311.1500 mm) | | Height: | 19.3750 inches (492.1250 mm) |
