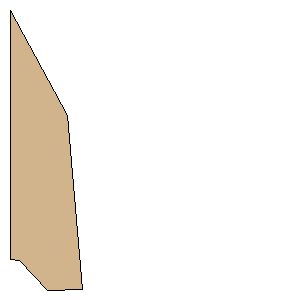

LOC V2 5.5 Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | 1/4 Aircraft Plywood |
Download as PDF | Point 1: | (0.0000 mm, 306.6344 mm) | | Point 2: | (11.1097 mm, 307.7517 mm) | | Point 3: | (46.3045 mm, 343.5052 mm) | | Point 4: | (89.3204 mm, 342.9465 mm) | | Point 5: | (70.3264 mm, 129.5430 mm) | | Point 6: | (0.0000 mm, 0.0000 mm) | | Width: | 12.0722 inches (306.6344 mm) | | Height: | 13.5238 inches (343.5052 mm) |
