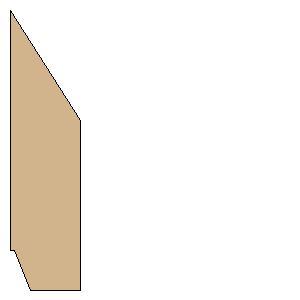

Semroc V2 (XKit, clone of Estes Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | 1/4 Aircraft Plywood |
Download as PDF | Point 1: | (0.0000 mm, 76.2000 mm) | | Point 2: | (1.5240 mm, 76.2000 mm) | | Point 3: | (6.3500 mm, 88.9000 mm) | | Point 4: | (22.3520 mm, 88.9000 mm) | | Point 5: | (22.2250 mm, 35.0965 mm) | | Point 6: | (0.0000 mm, 0.0000 mm) | | Width: | 3.0000 inches (76.2000 mm) | | Height: | 3.5000 inches (88.9000 mm) |
