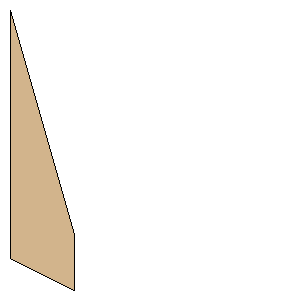

Binder Design Exocet.rkt Trapezo Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:1/4 Aircraft Plywood

Download as PDF

Root Chord:13.5000 inches (342.9000 mm)
Tip Chord:3.0000 inches (76.2000 mm)
Sweep Distance:12.2060 inches (310.0324 mm)
SemiSpan:3.5000 inches (88.9000 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(88.9000 mm, 310.0324 mm)
Point 3:(88.9000 mm, 386.2324 mm)
Point 4:(0.0000 mm, 342.9000 mm)
Width:3.5000 inches (88.9000 mm)
Height:15.2060 inches (386.2324 mm)
