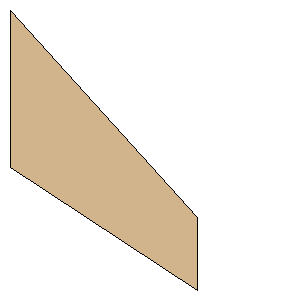

Thunder Child 54mm dual deploy ( Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | 1/4 Aircraft Plywood |
Download as PDF | Root Chord: | 3.5000 inches (88.9000 mm) | | Tip Chord: | 1.5999 inches (40.6375 mm) | | Sweep Distance: | 4.6180 inches (117.2972 mm) | | SemiSpan: | 4.1580 inches (105.6132 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (105.6132 mm, 117.2972 mm) | | Point 3: | (105.6132 mm, 157.9347 mm) | | Point 4: | (0.0000 mm, 88.9000 mm) | | Width: | 4.1580 inches (105.6132 mm) | | Height: | 6.2179 inches (157.9347 mm) |
