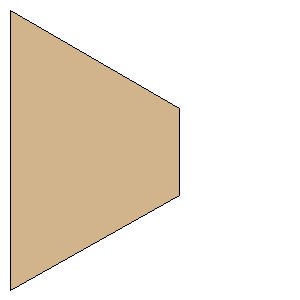

General Cluster (15 x 24mm) Trap Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | 1/4 Aircraft Plywood |
Download as PDF | Root Chord: | 14.8750 inches (377.8250 mm) | | Tip Chord: | 4.6250 inches (117.4750 mm) | | Sweep Distance: | 5.2270 inches (132.7658 mm) | | SemiSpan: | 9.0000 inches (228.6000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (228.6000 mm, 132.7658 mm) | | Point 3: | (228.6000 mm, 250.2408 mm) | | Point 4: | (0.0000 mm, 377.8250 mm) | | Width: | 9.0000 inches (228.6000 mm) | | Height: | 14.8750 inches (377.8250 mm) |
