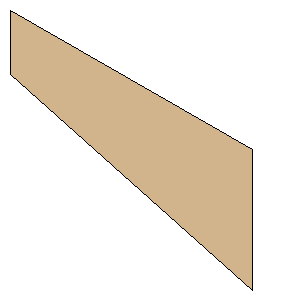

What If USS Enterprise Trapezoid Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | 1/4 Aircraft Plywood |
Download as PDF | Root Chord: | 3.0000 inches (76.2000 mm) | | Tip Chord: | 6.5000 inches (165.1000 mm) | | Sweep Distance: | 6.4952 inches (164.9781 mm) | | SemiSpan: | 11.2500 inches (285.7500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (285.7500 mm, 164.9781 mm) | | Point 3: | (285.7500 mm, 330.0781 mm) | | Point 4: | (0.0000 mm, 76.2000 mm) | | Width: | 11.2500 inches (285.7500 mm) | | Height: | 12.9952 inches (330.0781 mm) |
