Hughes AIM-47A Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | 1/8 Aircraft Plywood |

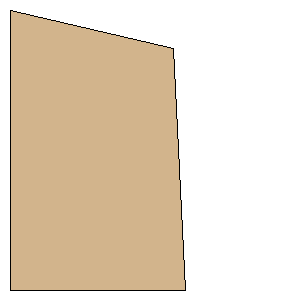

Download as PDF | Point 1: | (0.0000 mm, 45.3800 mm) | | Point 2: | (28.4300 mm, 45.3800 mm) | | Point 3: | (26.4500 mm, 6.2820 mm) | | Point 4: | (0.0000 mm, 0.0000 mm) | | Width: | 1.7866 inches (45.3800 mm) | | Height: | 1.7866 inches (45.3800 mm) |
