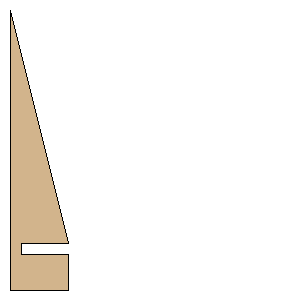

Heat Seeker (2.6") Freeform Fin Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:1/8 Aircraft Plywood

Download as PDF

Point 1:(0.0000 mm, 370.3828 mm)
Point 2:(77.1652 mm, 370.3828 mm)
Point 3:(77.1652 mm, 324.0786 mm)
Point 4:(15.4432 mm, 324.0786 mm)
Point 5:(15.4432 mm, 308.6608 mm)
Point 6:(77.1652 mm, 308.6608 mm)
Point 7:(0.0000 mm, 0.0000 mm)
Width:14.5820 inches (370.3828 mm)
Height:14.5820 inches (370.3828 mm)
