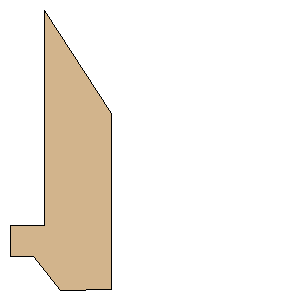

LOC/Precision 4" V2 Pre-producti Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:1/8 Aircraft Plywood

Download as PDF

Point 1:(0.0000 mm, 190.5000 mm)
Point 2:(-30.4800 mm, 190.5000 mm)
Point 3:(-30.4800 mm, 218.3568 mm)
Point 4:(-9.5250 mm, 218.4400 mm)
Point 5:(14.6050 mm, 247.6500 mm)
Point 6:(59.6900 mm, 247.4863 mm)
Point 7:(59.7159 mm, 91.7212 mm)
Point 8:(0.0000 mm, 0.0000 mm)
Width:8.7000 inches (220.9800 mm)
Height:9.7500 inches (247.6500 mm)
