AGM-57x HeatSeeker Freeform Fin Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | 1/8 Aircraft Plywood |

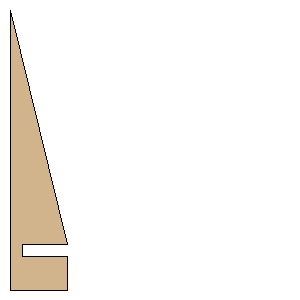

Download as PDF | Point 1: | (0.0000 mm, 431.8000 mm) | | Point 2: | (88.9000 mm, 431.8000 mm) | | Point 3: | (88.9000 mm, 380.0475 mm) | | Point 4: | (19.0500 mm, 380.0475 mm) | | Point 5: | (19.0500 mm, 361.9500 mm) | | Point 6: | (88.9000 mm, 361.9500 mm) | | Point 7: | (0.0000 mm, 0.0000 mm) | | Width: | 17.0000 inches (431.8000 mm) | | Height: | 17.0000 inches (431.8000 mm) |
