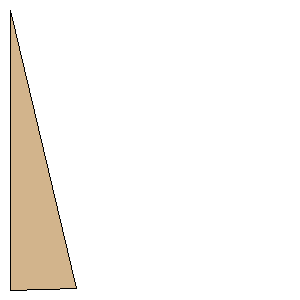

SA-5 Gammon Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | 1/8 Aircraft Plywood |
Download as PDF | Root Chord: | 18.0000 inches (457.2000 mm) | | Tip Chord: | 0.0000 inches (0.0000 mm) | | Sweep Distance: | 17.8740 inches (453.9996 mm) | | SemiSpan: | 4.2500 inches (107.9500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (107.9500 mm, 453.9996 mm) | | Point 3: | (107.9500 mm, 453.9996 mm) | | Point 4: | (0.0000 mm, 457.2000 mm) | | Width: | 4.2500 inches (107.9500 mm) | | Height: | 18.0000 inches (457.2000 mm) |
