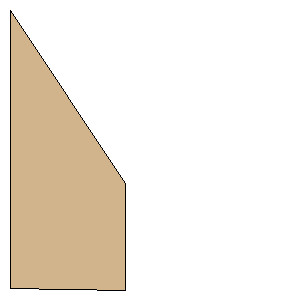

Custom 1/8 Aircraft Plywood Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | 1/8 Aircraft Plywood |
Download as PDF | Root Chord: | 3.6220 inches (91.9988 mm) | | Tip Chord: | 1.3780 inches (35.0012 mm) | | Sweep Distance: | 2.2602 inches (57.4091 mm) | | SemiSpan: | 1.4961 inches (38.0009 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (38.0009 mm, 57.4091 mm) | | Point 3: | (38.0009 mm, 92.4103 mm) | | Point 4: | (0.0000 mm, 91.9988 mm) | | Width: | 1.4961 inches (38.0009 mm) | | Height: | 3.6382 inches (92.4103 mm) |
