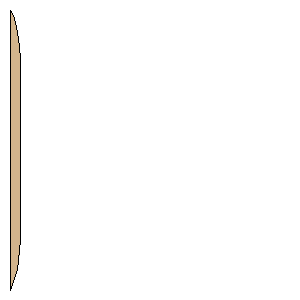

Bell X-1 (1/20) Glamorous Glenni Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | 1/8 Aircraft Plywood |
Download as PDF | Point 1: | (0.0000 mm, 320.3160 mm) | | Point 2: | (5.4334 mm, 307.6120 mm) | | Point 3: | (8.4488 mm, 296.7560 mm) | | Point 4: | (9.6550 mm, 287.1070 mm) | | Point 5: | (10.8611 mm, 275.0450 mm) | | Point 6: | (12.0673 mm, 262.9840 mm) | | Point 7: | (12.0673 mm, 55.5234 mm) | | Point 8: | (10.2580 mm, 32.6063 mm) | | Point 9: | (7.2426 mm, 19.9415 mm) | | Point 10: | (4.8303 mm, 9.6891 mm) | | Point 11: | (0.0000 mm, 0.0000 mm) | | Width: | 12.6109 inches (320.3160 mm) | | Height: | 12.6109 inches (320.3160 mm) |
