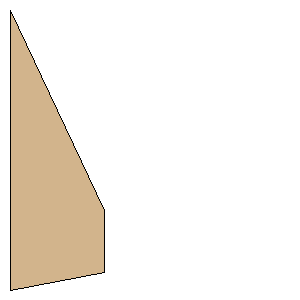

LOC/Precision Lil' Diter Trapezo Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | 1/8 Aircraft Plywood |
Download as PDF | Root Chord: | 8.1875 inches (207.9625 mm) | | Tip Chord: | 1.8125 inches (46.0375 mm) | | Sweep Distance: | 5.8750 inches (149.2250 mm) | | SemiSpan: | 2.7500 inches (69.8500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (69.8500 mm, 149.2250 mm) | | Point 3: | (69.8500 mm, 195.2625 mm) | | Point 4: | (0.0000 mm, 207.9625 mm) | | Width: | 2.7500 inches (69.8500 mm) | | Height: | 8.1875 inches (207.9625 mm) |
