Rocketry Parts Database >> Fins >>

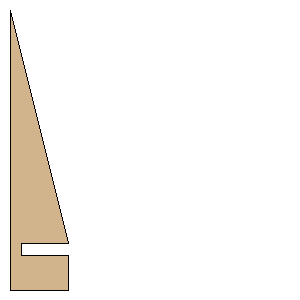

scratch_2.1heatseeker_duplicate. Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:1/8 Aircraft Plywood

Download as PDF

Point 1:(0.0000 mm, 311.3532 mm)
Point 2:(64.8716 mm, 311.3532 mm)
Point 3:(64.8716 mm, 272.4404 mm)
Point 4:(12.9794 mm, 272.4404 mm)
Point 5:(12.9794 mm, 259.4610 mm)
Point 6:(64.8716 mm, 259.4610 mm)
Point 7:(0.0000 mm, 0.0000 mm)
Width:12.2580 inches (311.3532 mm)
Height:12.2580 inches (311.3532 mm)
