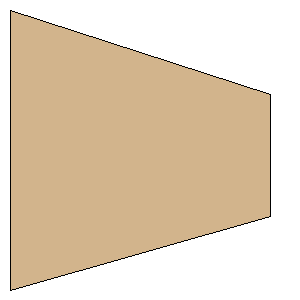

Cosmodrome Rocketry Nike Smoke T Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | 1/8 Aircraft Plywood |
Download as PDF | Root Chord: | 3.7100 inches (94.2340 mm) | | Tip Chord: | 1.6100 inches (40.8940 mm) | | Sweep Distance: | 1.1210 inches (28.4734 mm) | | SemiSpan: | 3.4500 inches (87.6300 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (87.6300 mm, 28.4734 mm) | | Point 3: | (87.6300 mm, 69.3674 mm) | | Point 4: | (0.0000 mm, 94.2340 mm) | | Width: | 3.4500 inches (87.6300 mm) | | Height: | 3.7100 inches (94.2340 mm) |
