Rocketry Parts Database >> Fins >>

Pem - Tech Space Ark Trapezoid F Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:1/8 Aircraft Plywood

Download as PDF

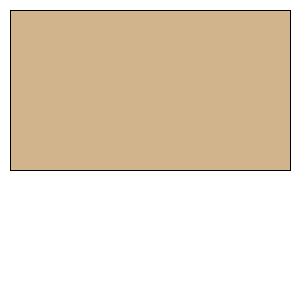

Root Chord:1.0000 inches (25.4000 mm)
Tip Chord:1.0000 inches (25.4000 mm)
Sweep Distance:0.0000 inches (0.0000 mm)
SemiSpan:1.7500 inches (44.4500 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(44.4500 mm, 0.0000 mm)
Point 3:(44.4500 mm, 25.4000 mm)
Point 4:(0.0000 mm, 25.4000 mm)
Width:1.7500 inches (44.4500 mm)
Height:1.0000 inches (25.4000 mm)
