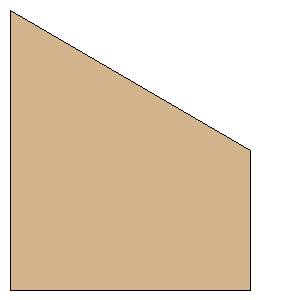

fsm.rkt Trapezoid Fin Set Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:1/8 Aircraft Plywood

Download as PDF

Root Chord:3.5000 inches (88.9000 mm)
Tip Chord:1.7500 inches (44.4500 mm)
Sweep Distance:1.7500 inches (44.4500 mm)
SemiSpan:3.0000 inches (76.2000 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(76.2000 mm, 44.4500 mm)
Point 3:(76.2000 mm, 88.9000 mm)
Point 4:(0.0000 mm, 88.9000 mm)
Width:3.0000 inches (76.2000 mm)
Height:3.5000 inches (88.9000 mm)
