Alien Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | 1/8 Aircraft Plywood |

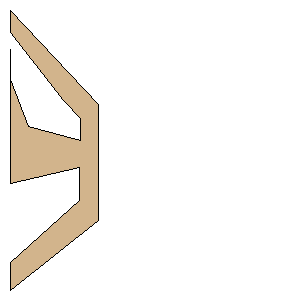

Download as PDF | Point 1: | (0.0000 mm, 122.5831 mm) | | Point 2: | (63.8255 mm, 107.4916 mm) | | Point 3: | (63.8255 mm, 138.3148 mm) | | Point 4: | (0.2310 mm, 194.5550 mm) | | Point 5: | (0.2310 mm, 219.7451 mm) | | Point 6: | (81.1986 mm, 156.2483 mm) | | Point 7: | (81.1986 mm, 50.3285 mm) | | Point 8: | (0.0173 mm, -36.1456 mm) | | Point 9: | (0.0173 mm, -16.0012 mm) | | Point 10: | (48.6942 mm, 46.9660 mm) | | Point 11: | (64.3860 mm, 63.2182 mm) | | Point 12: | (64.3860 mm, 82.8330 mm) | | Point 13: | (50.9379 mm, 79.1251 mm) | | Point 14: | (16.8043 mm, 70.1720 mm) | | Point 15: | (0.0173 mm, 27.6450 mm) | | Point 16: | (0.0000 mm, 0.0000 mm) | | Width: | 4.8261 inches (122.5831 mm) | | Height: | 10.0744 inches (255.8907 mm) |
